USB-2600 Series - Multifunction DAQ-USB with up to 64 SE / 32 DIFF A/D 16-Bit, 1MS/s, 24 digital I/O and 4 Timers (4 D/A option)

USB-2600 Series - Multifunction DAQ-USB with up to 64 SE / 32 DIFF A/D 16-Bit, 1MS/s, 24 digital I/O and 4 Timers (4 D/A option)
Clear
Ask for a quote
Demander un devis
Main features
  • Up to 64 SE or 32 DIFF analog inputs
  • Sampling rate up to 1 MS/s
  • 16-Bit Resolution
  • Up to 4 analog outputs
  • 24 digital I/O, 4 counters
  • 4 Timer
  • Card format, ideal for OEM and embedded applications

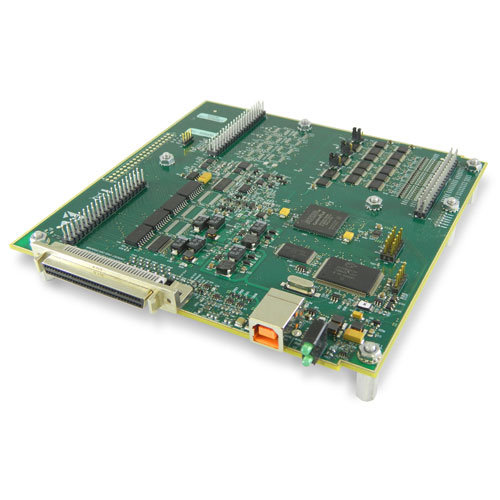

USB-2623 USB-based DAQ board with 16 SE A/D, 1 MS/s sample rate, 24DIO, 4 32-bit counters, and 4timers 864 €
USB-2627 USB-based DAQ board with 16 SE A/D, 1 MS/s sample rate, 4 D/A, 24 DIO, 4 32-bit counters, and 4 timers 1085 €
USB-2633 USB-based DAQ board with 64 SE A/D, 1 MS/s sample rate, 24 DIO, 4 32-bit counters, and 4 timers 1194 €
USB-2637 USB-based DAQ board with 64 SE A/D, 1 MS/s sample rate, 4 D/A, 24 DIO, 4 32-bit counters, and 4 timers 1410 €

USB-2600 Series: DAQ-USB MCC  with up to 64 SE / 32 DIFF A/D 16-Bit, 1MS/s and 4 D/A 1MS/s

Measurement Computing’s (MCC) USB-2600 Series is a DAQ-USB with a 16-Bit, 1MS/s A/D converter, up to 64 analog inputs, up to four 16-bit, 1 MHz analog outputs, 24 digital I/O, 4 timer outputs, and four 32-bit counters.

Each USB-2600 Series board has a 16-bit, 1 MS/s ADC coupled with 16 SE analog inputs (USB-2623 and USB-2627), 64 SE analog inputs (USB-2633 and USB-2637). The input range is fixed at ±10 V.

Four 16-bit, 1 MS/s analog output channels have an output range of ±10 V. The maximum rate at which analog outputs update depends on several factors, including the speed of the USB port. Typically, with the A/D operating at the full 1 MS/s rate, each analog output updates continuously from computer memory at 1 MS/s regardless of the number of channels in a scan.

The 24 TTL-level digital I/O lines are software selectable for input or output. The typical maximum transfer rate (system paced, asynchronous) is 4,000 8-bit port or single-bit reads/writes per second. Each board has an onboard jumper for configuring the digital I/O lines for pullup or pull-down (default).

Four 32-bit counters are included in USB-2600 Series devices. Each counter accepts frequency inputs up to 20 MHz. Four pulse width modulation (PWM) timer outputs can generate a square wave with a programmable frequency in the range of 0.015 Hz to 32 MHz.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
