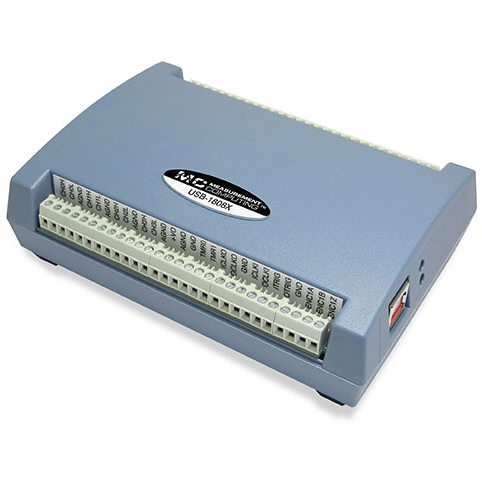

USB-1808 Series - Multifunction USB DAQ with 8 simultaneous 18-Bit A/D, up to 200 KS/s, 2 D/A and 4 DIO

USB-1808 Series - Multifunction USB DAQ with 8 simultaneous 18-Bit A/D, up to 200 KS/s, 2 D/A and 4 DIO
Clear
Ask for a quote
Demander un devis
Main features
  • 8 single-ended / differential analog inputs
  • 18-Bit resolution
  • Simultaneous sampling up 200KS/s (1 A/D converter per input)
  • 2 analog outputs
  • 4 DIO
  • 2 counters and 2 quadrature encoders
  • 2 Timer outputs
  • Synchronous operations of AI, AO, DIO (up to 200 kS/ s per channel)
  • Clock and External Trigger
  • No external power required
  • Board-Only OEM Version Available
USB-1808 Data acquisition USB device with 8 A/D 18-Bit, simultaneous, up to 50KS/s, 2 D/A, 8 DIO (with USB cable) 808 €
USB-1808-OEM USB-based OEM data acquisition board with 8 A/D 18-Bit, simultaneous, up to 50KS/s, 2 D/A, 8 DIO 808 €
USB-1808X Data acquisition USB device with 8 A/D 18-Bit, simultaneous, up to 200KS/s, 2 D/A, 8 DIO (with USB cable) 1039 €
USB-1808X-OEM USB-based OEM data acquisition board with 8 A/D 18-Bit, simultaneous, up to 200KS/s, 2 D/A, 8 DIO 1039 €

USB-1808 Series: DAQ-USB MCC with 8 A/D 18-Bit, simultaneous, up to 200 KS/s

Measurement Computing’s (MCC) USB-1808 Series is a DAQ-USB with 8 simultaneous analog inputs configurable by software in single-wire (SE) or differential (DIFF), 18-Bit resolution. The input range is software programmable from ± 10 V, ± 5 V, 0 V to 10 V, and 0 V to 5. USB-1808X models support sample rates up to 200 KS/s per channel . USB-1808 models support sample rates up to 50 KS/s per channel.

USB-1808 Series devices offer two 16-bit analog outputs. USB-1808X models can be updated at a rate of 500 kS/s per channel, while USB-1808 models can be updated at a rate of 125 kS/s. The output range is fixed at ±10 V.

The USB-1808 series has 4 TTL-level digital I / Os that can be individually configured as input or output. An internal jumper allows them to be configured in pull-up (+ 5V) or pull-down (0V) mode.

Finally, the USB-1808 series has 2 counters (counting, period measurement, pulse width measurement) 32-Bit TTL level which accepts inputs up to 50 MHz.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ-USB modules on our website
