TITAN - Highest Performing Mass Interconnect

TITAN - Highest Performing Mass Interconnect
Main features

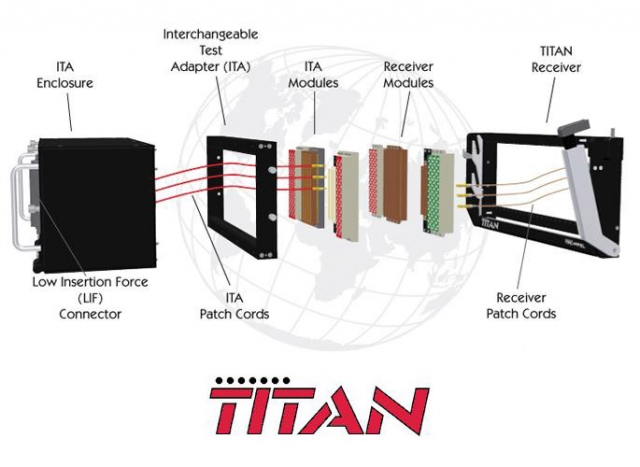

The MAC Panel TITAN series is a VXI, PXI, LXI and GPIB test cabling interface (ATE) solution. It allows a simplified connection between the various resources of the test system and the products to be tested with great flexibility.

TITAN sets the standard for Mass Interconnect performance, configuration modularity and long term reliability. Has been designed to offer exceptional configuration flexibility for use with any ATE platform and offers unparalleled I/O density coupled with the widest selection of contact types available for Mass Interconnect.

TITANConnectivity

  • High Density Signal – 96 or 200 I/O per Slot
  • High Density Power – up to 10 Amps per Contact
  • High Current Power – up to 50 Amps per Contact
  • Coax – DC-40 GHz
  • Pneumatic
  • Thermocouple
  • Triax and Twinax
  • Vacuum

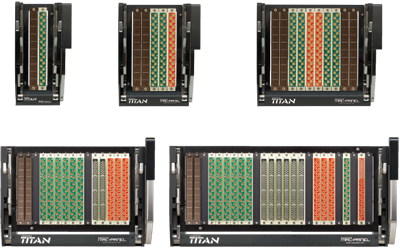

TITAN Versions

TITAN Hz

Configured in a horizontal format, the TITAN Hz is a perfect choice for applications that require a lower profile interface or for interfacing to bed of nails test fixtures.
