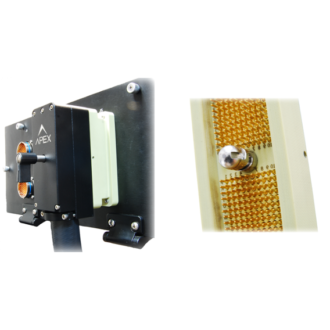

Main features

High Density Connector, High Performances

  • High density
  • High performance sontacts
  • 5 A current rating
  • Up to 20 awg wiring
  • High flexibility
  • Versatile accessories

Improved Contacts

When defining a new connector we knew that one of the top priorities was to improve the strength of the male contacts.

300% Stronger

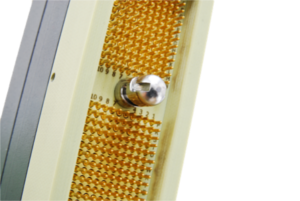

We used our extensive experience in high performance contact design to develop a unique 1.0mm contact that is 300% stronger than contacts in other 0.1″ pitch connectors, offering unparalleled reliability even in the most vulnerable operating environments.


5 amp Current Rating

Not only is the contact stronger than comparable systems, it also has a 5 amp current rating and can accommodate a 20awg cable; a significant improvement over the more typical 2 to 3 amps generally available in the market.




Outstanding Cable Management

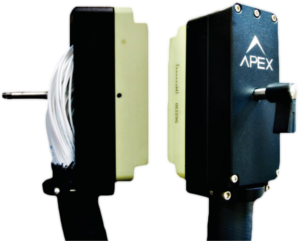

A recurring theme in our market research has been user frustration with poorly designed back shells that added to build times, had poor cable management features and were vulnerable to damage. The highly durable APEX aluminum back shell allows the wiring to be performed with the cable clamp in position if required. The main cover is easily removed for easy access during build and maintenance; this can be of particular benefit during the debug process since it allows access to the cables and contacts while the APEX connector is in-situ.




Maximum Design Flexibility

All APEX plugs and sockets have the option of using either cable connections or are mounted to a PCB, offering maximum design flexibility. APEX 1mm wiring contacts accept 20awg to 24awg cables sizes. The APEX PCB modules and contacts have been designed to maximize the available space for circuit trace routing. It is possible to mix and match cables and/or APEX plugs and sockets.
