PCIe-7432 - 32-CH Isolated DI & 32-CH Isolated DO PCIe Card with High Input Range

PCIe-7432 - 32-CH Isolated DI & 32-CH Isolated DO PCIe Card with High Input Range
Clear
Main features
  • Supports 3.3V 12V PCIe bus
  • 32CH isolated digital inputs & 32CH isolated digital outputs
  • Isolation Voltage: 2500V RMS
  • Sink current up to 500mA on single isolated output
  • Isolated input voltage up to 24V (PCIe-7432/7432HIR)
  • Two external interrupt sources

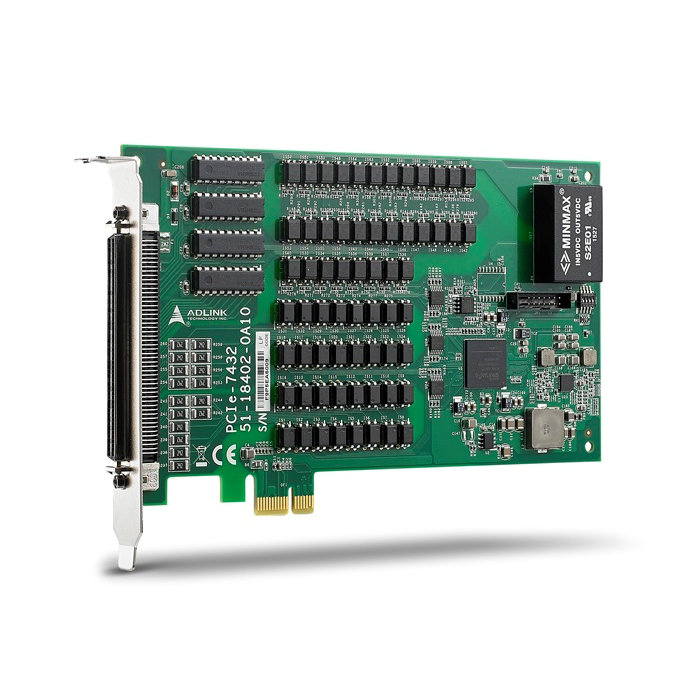

PCIe-7432 32-CH Isolated DI & 32-CH Isolated DO PCIe Card
PCIe-7432HIR 32-CH Isolated DI & 32-CH Isolated DO PCIe Card with High Input Range

ADLINK PCIe-7432 is a 32CH Isolated DI & 32CH Isolated DO PCIe Card, featuring robust 2,500V isolation protection, suitable for most industrial applications. Input range up to 24V makes it easy to acquire status of external devices (PCIe-7432HIR output range is from 5 to 35V), making it suitable for relay driving and industrial automation applications. Also provided are two easily configurable interrupt sources on digital input channels.
