| PCI-7432 | 32-CH Isolated DI & 32-CH Isolated DO Card. RoHS-compliant | |
| PCI-7433 | 64-CH Isolated DI Card, RoHS-compliant | |
| PCI-7434 | 64-CH Isolated DO Card, RoHS-compliant | |
| PCI-7432HIR | 32-CH Isolated DI & 32-CH Isolated DO Card with High Input Range | |
| PCI-7433HIR | 64-CH Isolated DI Card with High Input Range |

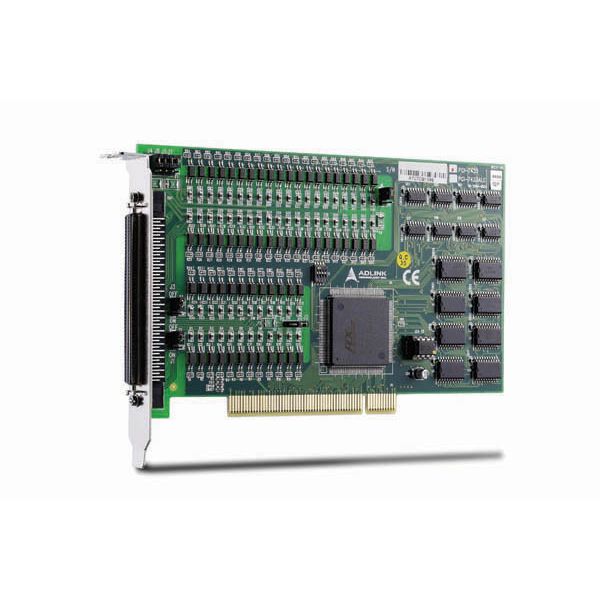

PCI-7432/7433/7434/7432HIR/7433HIR - 64-CH Isolated Digital I/O PCI Cards
Main features
- Supports a 32-bit 5 V PCI bus
- 32-CH isolated digital inputs & 32-CH isolated digital outputs (PCI-7432 & PCI-7432HIR)
- 64-CH isolated digital inputs (PCI-7433 & PCI-7433HIR)
- 64-CH isolated digital outputs (PCI-7434)
- 2500 VRMS optical isolation
- Sink current up to 500 mA on each isolated output
Datasheet
PCI-7432/7433/7434/7432HIR/7433HIR
ADLINK’s cPCI/PCI-743X series cards are 64-CH high-density digital input and/or output cards that provide a robust 2,500 V isolation protection and are suitable for most industrial applications. The wide input range of the cPCI/PCI-7432 and cPCI/PCI-7433 makes it easy to sense the status of external devices. There are several options for PCI-743X series, such as normal version with input range from 0 to 24 V, as well as HIR version with high input range from 0 to 50 V. The PCI- 7433ALC is specifically designed for AC power test system.
The cPCI/PCI-7432 and cPCI/PCI-7434 feature a wide output range from 5 to 35 V, suitable for relay driving and industrial automation applications. The cPCI/PCI-7432 and cPCI/PCI-7433 also provide two interrupt sources on digital input channels, which are easily configurable.
