E-DIO24 - Ethernet-Based 24-Channel Digital I/O Device

E-DIO24 - Ethernet-Based 24-Channel Digital I/O Device
Clear
Ask for a quote
Demander un devis
Main features
  • 24-channel digital I/O
  • ±24 mA drive capability
  • Digital output alarm
  • One 32-bit event counter (shared with a DIO pin)
  • Remote network configuration
  • DIN-rail compatible
  • External power supply included with standard version
  • Board-Only OEM Version Available

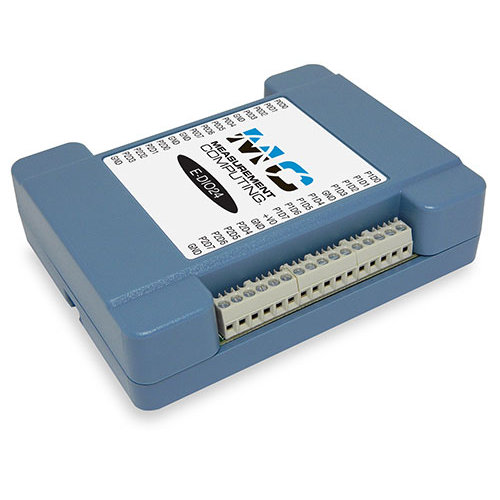

E-DIO24-EU Ethernet-based digital I/O DAQ device with 24 bit-configurable DIO lines, one counter (US & EU Plug) 363 €

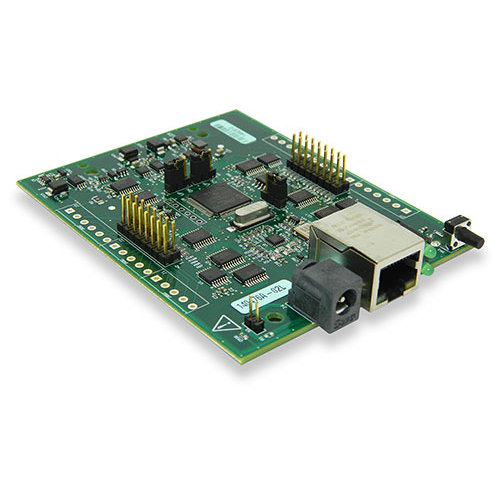

E-DIO24-OEM Ethernet-based digital I/O DAQ board with 24 bit-configurable DIO lines, one counter (without PSU) 304 €

E-DIO24: DAQ-Ethernet MCC with 24 Digital I/O

The E-DIO24 from Measurement Computing (MCC) is a 24 digital I/O DAQ-Ethernet configured as three 8-bit ports. Each bit is individually configurable for input or output. Users can enable a digital bit configured for output to change state when a host connection is established or broken.. Data can be transferred at rates up to 5kS/s when the device and host are connected by Ethernet to the same local network. Typical throughput is system-dependent. All DIO lines are pulled high by default to 5 V through 47 kΩ resistors through three onboard jumpers. Each jumper configures one 8-bit digital port, and can easily be changed to pull-down.

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ modules on our website
