Main features
  • 1 GS/s Real Time Sampling rate
  • 6.8 GB/s throughput across x8 PCIe Gen3
  • 2 channels sampled at 12 bit resolution
  • 4096 point On-FPGA FFT Engine
  • 8 Gigabytes of on-board Dual-Port Memory
  • Variable frequency external clock capable
  • Fixed ±400 mV Input Range
  • 57.1 dB Signal to Noise Ratio
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • Half-Length PCIe Gen3 x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, MATLAB, Python and LabVIEW
  • Support for Windows and Linux

ATS9371 : PCI Express card, digitizer 2 channels, 1 Gs/s 12-bit

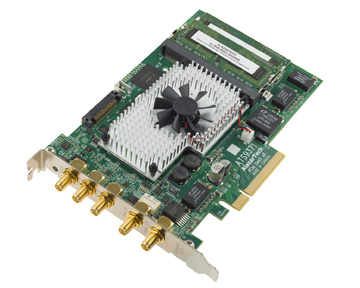

ATS9371 is a 12-bit waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.

With on-FPGA FFT signal processing and data throughput as fast as 6.8 GB/s (6800 MB/s), ATS9371 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.
