ATS9352 - PCI Express digitizer card, 2 channel, 500 Ms/s 12-bit

ATS9352 - PCI Express digitizer card, 2 channel, 500 Ms/s 12-bit
Main features
  • 500 MS/s Real Time Sampling per channel
  • 1.6 GB/s throughput across PCIe Gen2 x4 bus
  • 2 channels sampled at 12 bit resolution
  • Up to 250 MHz full power bandwidth
  • Variable Input Range from ±100 mV to ±4 V
  • NIST- and CNRC-Traceable Calibration
  • Continuous Streaming Mode
  • 256 Megasamples of Dual-Port Memory per channel
  • Trigger Input & Trigger Output connectors
  • Half-Length PCIe Card
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9352 : PCI Express digitizer card, 2 channel, 500 Ms/s 12-bit

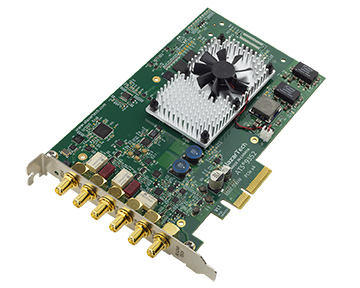

AlazarTech ATS®9352 is 4-lane PCI Express Gen 2 (PCIe x4), dual-channel, high-speed, 12-bit, 500 MS/s waveform digitizer card capable of streaming acquired data to PC memory at rates up to 1.6 GB/s or storing it in its on-board dual-port acquisition memory buffer of 256 Megasamples.

Unlike other products on the market, ATS9352 does not use interleaved sampling. Each input has its own 12-bit, 500 MSPS ADC chip. The variable frequency external clock allows operation
from 500 MHz down to 30 MHz, making ATS9352 an ideal waveform digitizer for OCT applications.

Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to PC memory or hard disk. ATS9352 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process.

Users who need to integrate the ATS9352 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating systems.

All of this advanced functionality is packaged in a low-power, half-length PCI Express card.
