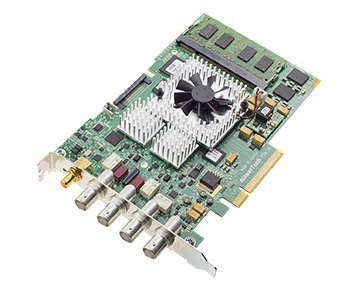

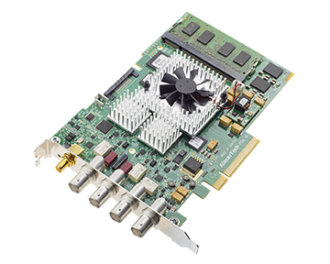

ATS9350 : PCI Express digitizer card, 2 channel, 500 Ms/s 12-bit
AlazarTech ATS®9350 is an 8-lane PCI Express (PCIe x8), dual-channel, high-speed, 12-bit, 500 MS/swaveform digitizer card capable of streaming acquired data to PC memory at rates up to 1.6 GB/s or storing it in its deep on-board dual-port acquisition memory buffer of up to 2 Gigasamples.
Up to four ATS9350 boards can be configured as a Master/Slave system to create a simultaneous sampling system of up to 8 input channels.
Unlike other products on the market, ATS9350 does not use interleaved sampling. Each input has its own 12-bit, 500 MSPS ADC chip.
Optional variable frequency external clock allows operation from 500 MHz down to 2 MHz, making ATS9350 an ideal waveform digitizer for OCT applications.
Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to PC memory or hard disk.
ATS9350 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process. Users who need to integrate the ATS9350 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating systems.
All of this advanced functionality is packaged in a low-power, half-length PCI Express card.
