ATS9872 : PCI Express digitizer, 2 channels, 8 bit, 1 GS/s

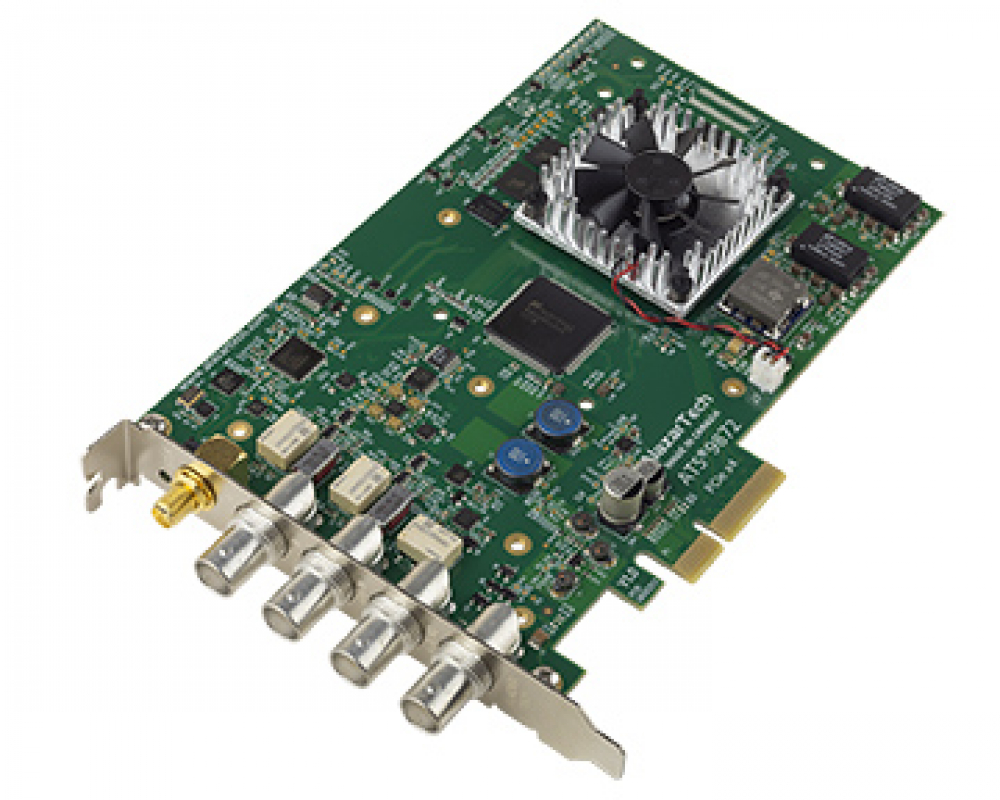

AlazarTech ATS®9872 is a 4-lane PCI Express Gen 2 (PCIe x4), dual-channel, high-speed, 8-bit, 1 GS/s waveform digitizer card capable of streaming acquired data to PC memory at rates up to 1.6 GB/s or storing it in its deep on-board dual-port acquisition memory buffer of 512 Megasamples.
Unlike other products on the market, ATS9872 does not use interleaved sampling. Each input has its own 8-bit, 1 GSPS ADC chip. Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to PC memory or hard disk.
ATS9872 allows users to build real-time data acquisition systems even under the Windows or Linux operating systems, as users are allowed to read acquired data even while the next acquisition is in progress. ATS9872 PCI Express digitizers are an ideal solution for cost sensitive OEM applications that require a digitizer to be embedded into the customer’s equipment.
ATS9872 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process. Users who need to integrate the ATS9872 in their own program can purchase a software development kit, ATSSDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating systems.
All of this advanced functionality is packaged in a low power, half-length PCI Express card.
