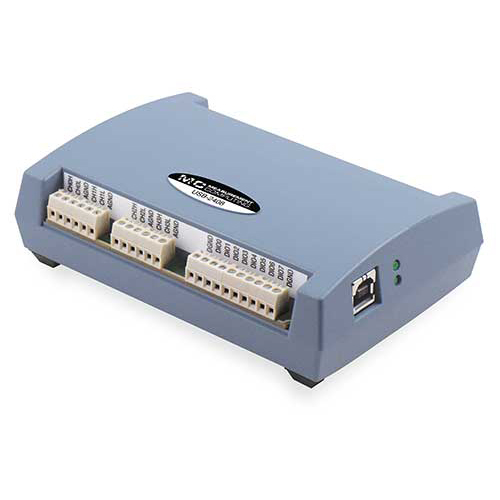

USB-2408 Series - Multifunction DAQ-USB with 16 SE /8 DIFF A/D 24-Bit, for Temperature (Thermocouple) and Voltage measurement

USB-2408 Series - Multifunction DAQ-USB with 16 SE /8 DIFF A/D 24-Bit, for Temperature (Thermocouple) and Voltage measurement
Clear
Main features
  • Mesure de thermocouple ou de tension
  • 16 SE ou 8 DIFF entrées analogiques
  • Résolution 24-Bit
  • Échantillonnage jusqu’à 1 Ke/s
  • 8 E/S numériques
  • Deux compteurs
  • Jusqu’à 2 sorties analogiques
  • Isolation 500 VDC entre le câblage de terrain et l’interface USB
USB-2408 USB-based 24-bit, 16 SE/8 DIFF temperature and voltage measurement device with 8 DIO and 2 counter 745 €
USB-2408-2AO USB-based 24-bit, 16 SE/8 DIFF temperature and voltage measurement device with 8DIO, 2 counter, 2 D/A 874 €

USB-2408 series: DAQ-USB MCC with 16 SE / 8 DIFF A/D 24-Bit, for voltage and temperature (Thermocouple) measurements

Measurement Computing’s (MCC) USB-2408 Series are multifunction DAQ devices designed for highly-accurate voltage or temperature measurements (thermocouple). USB-2408 Series includes 16 SE/8 DIFF analog inputs which you can configure for voltage or TC input on a per-channel basis. Eight software-selectable voltage input ranges are provided. You can configure these ranges on a per-channel basis from ±10 V to ±0.078 V.
When measuring TCs, configure analog inputs in DIFF mode. All devices also include open TC detection to identify improperly working thermocouples

The USB-2408-2AO includes two 16-bit analog outputs. Each output has a ±10 V range. Both outputs can be updated at a rate of up to 500 S/s per channel; one output can be updated at a rate of 1 kS/s

Eight digital I/O channels are included with each USB-2408 Series device, and you can read from or write to each individual bit.

Two 32-bit event counters are provided to count TTL pulses at read/write rates of up to 500 Hz. The counters accept inputs of up to 1 MHz

INCLUDED SOFTWARE

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

OPTIONAL SOFTWARE

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version

Find all MCC ‘s DAQ-USB modules on our website
