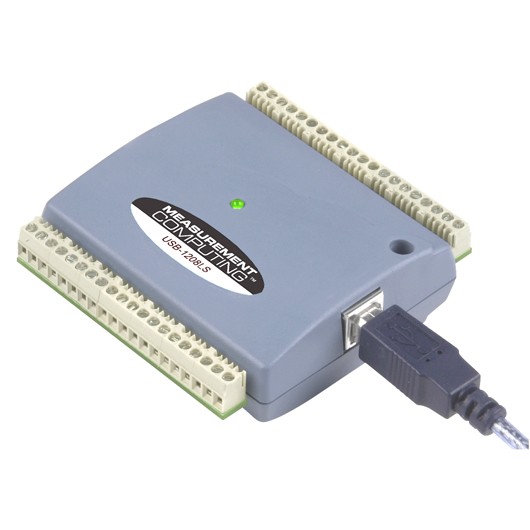

USB-1208LS: DAQ-USB MCC WITH 8SE/4DIFF A/D 12-Bit, 1.2KS/s and 2 D/A 10-Bit
Measurement Computing’s (MCC) USB-1208LS is DAQ-USB providing eight, 11-bit SE analog inputs or four, 12-bit DIFF analog inputs. All devices support software-selectable ranges that provide inputs from ±1 V to ±20 V in a DIFF configuration, and ±10 V in a SE configuration. When scanning in hardwarepaced mode, the USB-1208LS can sample at a maximum of 1.2 kS/s (aggregate). The total acquisition rate for all channels cannot exceed 1.2KS/s.
The USB-1208LS has two 10-bit analog output channels. Both outputs can be updated simultaneously at a rate up to 50 S/s per channel. One output can be updated at a rate up to 100 S/s. The output range is fixed at 0 V to 5 V.
The USB-1208LS provides 16 TTL-level digital I/O lines. Digital I/O can be programmed on each 8-bit port (Port A and Port B) for either input (default) or output. All pins pulled up to 5V via 47kΩ resistors (default). Change to pull-down using internal user-configurable jumpers.
Finally, the USB-1208LS has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.
Included Software
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
Optional Software
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
- MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
