| USB-1208HS | USB-based multifunction device with 8 A/D 13-bit, 1 MS/s | 626 € |
| USB-1208HS-2AO | USB-based multifunction device with 8 A/D 13-bit, 1 MS/s and 2 12-bit, 1 MS/s D/A | 745 € |
| USB-1208HS-4AO | USB-based multifunction device with 8 A/D 13-bit, 1 MS/s and 4 12-bit, 1 MS/s D/A | 874 € |

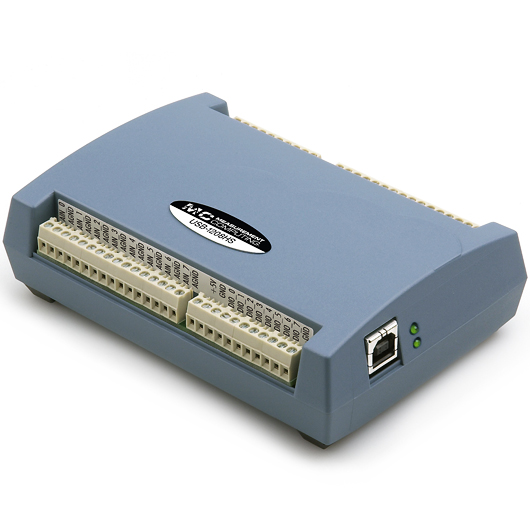

USB-1208HS Series - Multifunction DAQ-USB with 8 SE /4 DIFF A/D 13-Bit, 1MS/s and 16 DIO (option 2 or4 D/A)
Main features
- 8 SE / 4 DIFF entrées analogiques (sélectionnables par logiciel)
- Resolution 13-Bit
- Échantillonnage jusqu’à 1 Me/s
- Jusqu’à 4 sorties analogiques
- 16 E/S numériques
- Deux compteurs 32 bits
- Une sortie Timer
USB-1208HS Serie: DAQ-USB MCC WITH 8SE/4DIFF A/D 13-Bit, 1MS/s and 4 D/A 12-Bit
Measurement Computing’s (MCC) USB-1208HS Series is a USB-DAQ whose analog inputs can be configured by software, as follows:
– 8 single-wire multiplexed analog inputs (SE), 13-Bit resolution, with a programmable input range of ± 2.5V to ± 10V and 0V – 10V
OR
– 4 differential multiplexed analog inputs (DIFF), 13-Bit resolution, with a software programmable input range of ± 5V to ± 20V.
The maximum sample rate is 1 1MS/s (aggregate) and The total acquisition frequency for all channels cannot exceed 1MS/s.
USB-1208HS-2AO also has two analog outputs. USB-1208HS-4AO has four analog outputs. The analog outputs have a resolution of 12-Bit and an output range of ± 10V. Each output can be clocked up to a frequency of 1MS/s per channel.
The USB-1208HS Series has 16 digital TTL level I / O. Digital I / O can be programmed as input or output. An internal jumper allows digital I / O to be configured in pull-up or pull-down mode (default).
Finally, the USB-1408FS-Plus has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.
Included Software
- TracerDAQ® for acquiring and displaying data and generating signals
- InstaCalTM software utility for installing, configuration, and testing
- Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
- ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
- Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
- Linux® Support for MCC DAQ products
- Python™ Support for MCC DAQ Products
Optional Software
- DAQamiTM – data acquisition companion software for acquiring data and generating signals
- DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
- TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
- MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development
