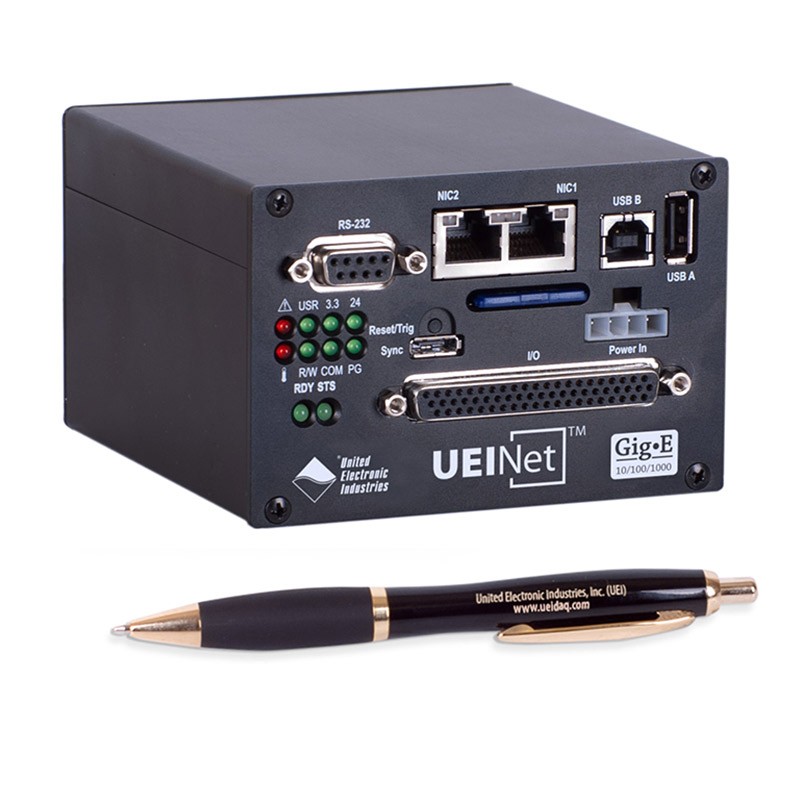

UEINet - Ultra Compact Gigabit Ethernet I/O modules

UEINet - Ultra Compact Gigabit Ethernet I/O modules
Main features
  • Two independent Gigabit (1000/100/10Base-T) Ethernet Interfaces
    • One port for Control, the second for diagnostics or
    • Both ports bonded/teamed for redundant network access
  • Compact: 2.7″ x 4″ x 4.1″
  • Over 60 different I/O configurations
  • Rugged: 100 g shock, 5 g Vibration, −40 to +50 °C (up to +70 °C with optional UEINET-FAN), 0 – 70,000 feet
  • Real-time: 1000 I/O scans in < 1 millisecond
  • Inter-device sync interface
  • Complete Windows, Linux, VxWorks, QNX support and more
  • LabVIEWTM, MATLAB®, DASYLabTM support and more
  • Optional deployments include:
    • UEIPAC, standalone controller with Linux or VxWorks OS
    • UEISim, Simulink target (standalone or hosted by PC)
    • UEIModbus, Modbus TCP I/O

The UEINet chassis provides ultra-compact Ethernet based I/O module suitable for a wide variety of distributed data acquisition, control and SCADA applications. Based on UEI’s popular PowerDNA® Cube architecture, the new series is designed for applications requiring distributed I/O with a very small footprint.
The UEINet chassis is an extremely rugged, Gigabit Ethernet-based I/O interface. The wide variety of allows you to configure one or more cubes to match the specific I/O requirements of your application. The PowerDNA Cube is ideally suited for a wide variety of industrial, aerospace and laboratory data acquisition and control applications.
UEINet chassis are 2.7”” x 4.1” x 4” and are packed with power and flexibility. Each UEINet module consists of two primary subsections: a Core Module and and an I/O board.
The “standard” UEI Net is designed to run as a slave I/O unit controlled directly by a host PC. The UEINet PAC UPG option allows the unit to run as a stand-alone device running an application you write in either Linux or VxWorks operating systems. Simulink users can use the UEINet SIM UPG option to enable the ability to build applications in Simulink. These simulink modules may be run on a host PC, stand-alone on the UEINet, or in a SCADA mode where a stand-alone application runs, but can be tuned by the host PC. Finally, there the UEINet Mod UPG allows the UEINet to run as a MODBUS TCP node.
