Main features
  •  Enhanced holdover and PTP slave capacity option
  • Full IEEE 1588-2008 (PTPv2) master and slave modes
  • Supports Multicast and Unicast operation
  • IPv4, IPv6, and Ethernet (Layer 2) transport mechanisms
  • Supports G.8262 Synchronous Ethernet with ESMC
  • ITU-T G.8265.1 Frequency, ITU-T G. 8275.1 & G.8275.2 Time & Phase profiles
  • IEEE PC37.238 and IEEE 61850 Power profiles
  • SMPTE profile
  • Remote provisioning and management (CLI, HTTP(S) and SNMP)

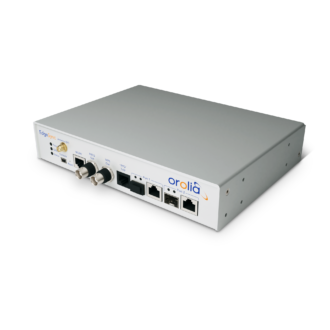

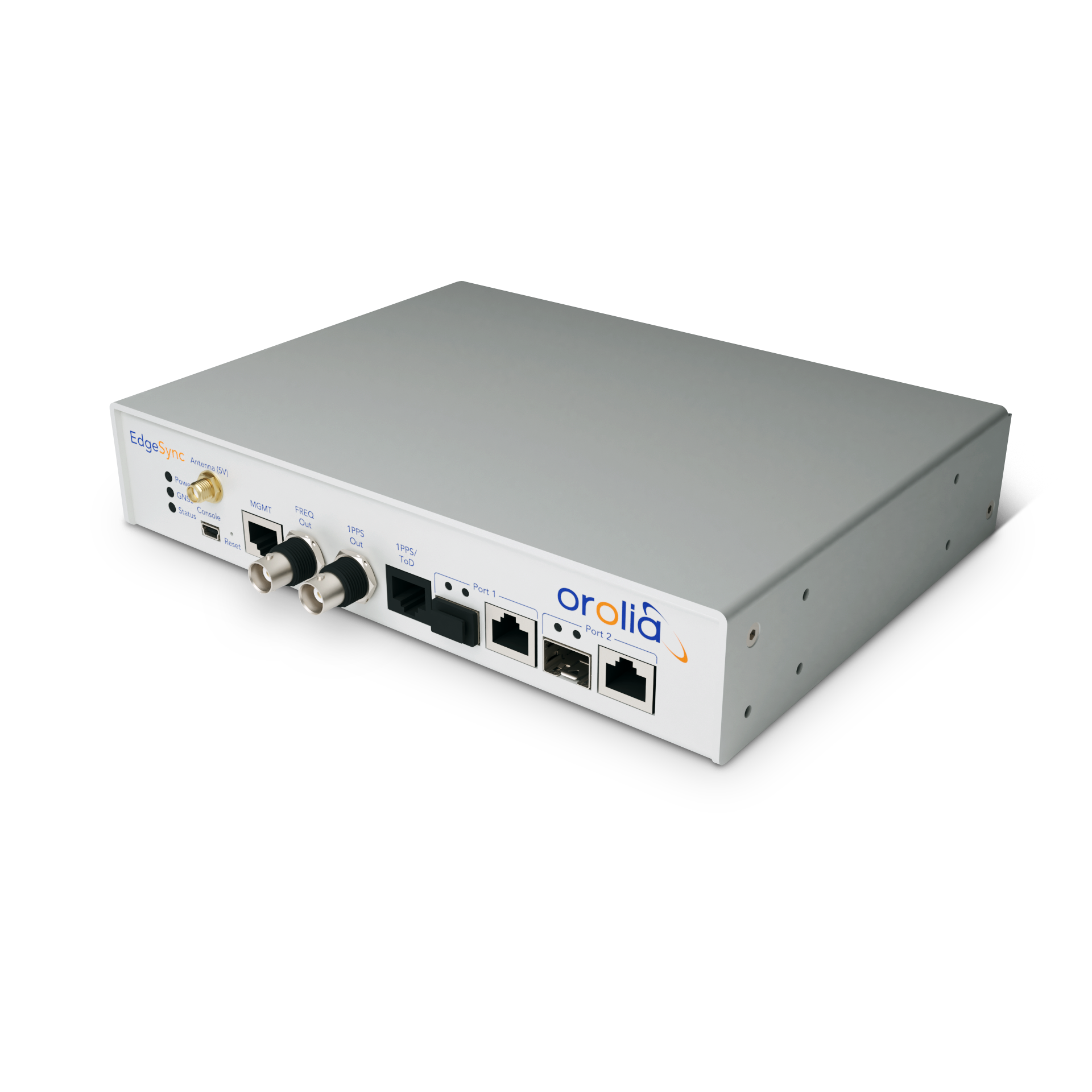

EdgeSync / EdgeSync+ : Network Timing Edge Device

EdgeSync is a network timing edge platform designed to provide high performance, scalability, ease of use, and manageability at a cost-effective price. Its versatile suite of features makes it suitable for a wide range of applications: Datacenter, Financial, Enterprise, Power and Smart Grid, Industrial IoT, Process Control and Automation, 5G, and more.

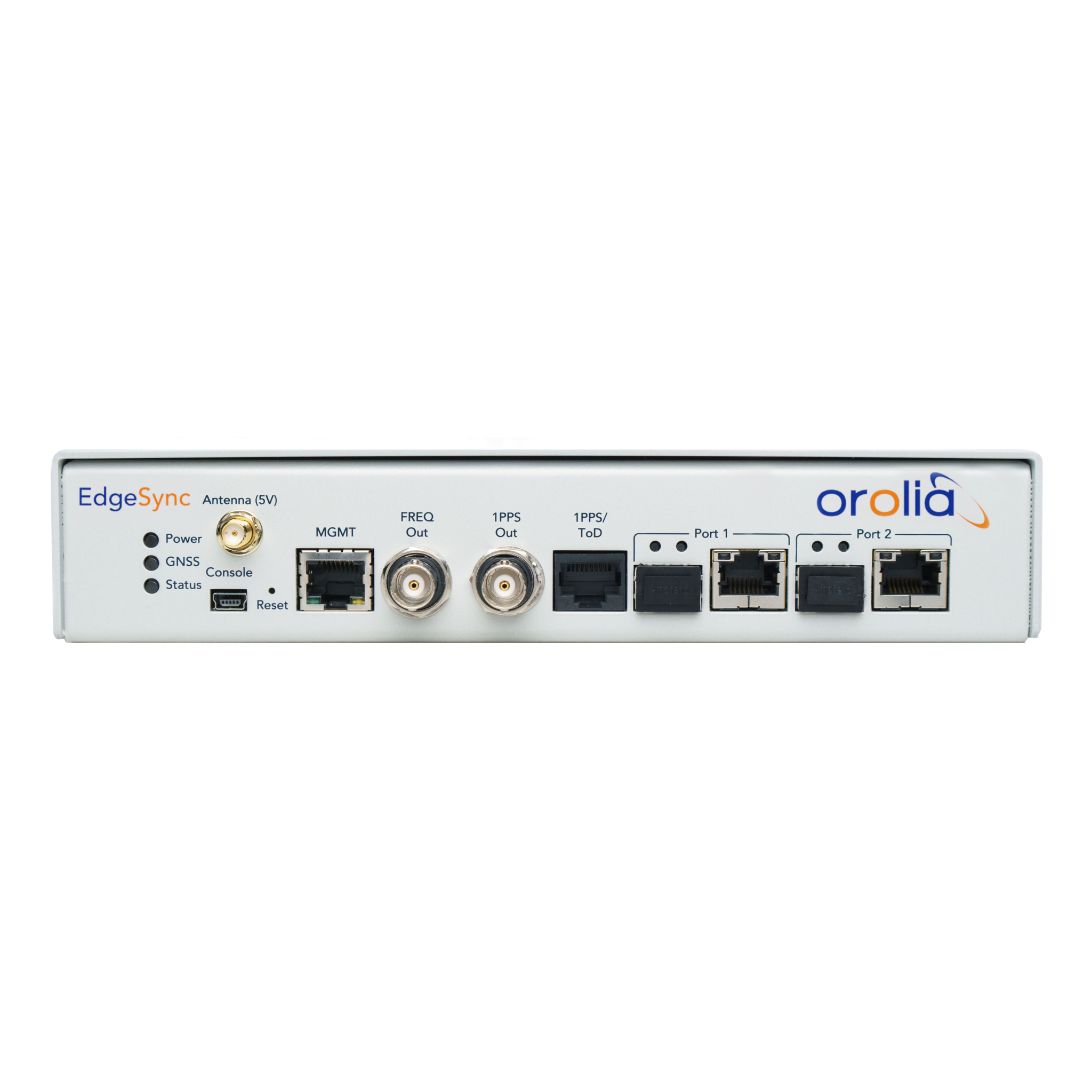

EdgeSync utilizes GNSS (GPS, Galileo, GLONASS, Beidou and QZSS), PTP and Synchronous Ethernet (SyncE) as input references and generates PTP, SyncE, NTP, and timing signals (frequency, 1PPS and ToD) as outputs. It features dual 1 GbE ports for both copper RJ45 and optical network timing connections as well as an independent management port. It provides all the essential timing interfaces such as GNSS, 1 Pulse Per Second (1PPS), Time of Day (ToD) (input/output) and frequency (selectable output).

EdgeSync also provides IEEE 1588-2008 (PTPv2) Grandmaster and Boundary Clock functionality at a low total cost of ownership. It leverages unique industry-leading PTP algorithms to deliver stringent timing for demanding, precise applications and supports multiple industry PTP profiles for interoperability. An enhanced oscillator and PTP slave capacity option allows to scale EdgeSync to peak levels of performance.
