DNx-DIO-433 - Guardian series 32 channel, 600 mA, current sourcing digital output interface with output voltage and current monitoring

DNx-DIO-433 - Guardian series 32 channel, 600 mA, current sourcing digital output interface with output voltage and current monitoring
Main features
  • 32 digital outputs
  • 600 mA (current source) outputs
  • Wide 3.3 to 36 VDC output range
  • 1 kHz maximum update rate
  • Guardian Series Diagnostics
    • Monitors output current
    • Monitors output voltage
    • Programmable current limit
    • PWM “soft-start” outputs

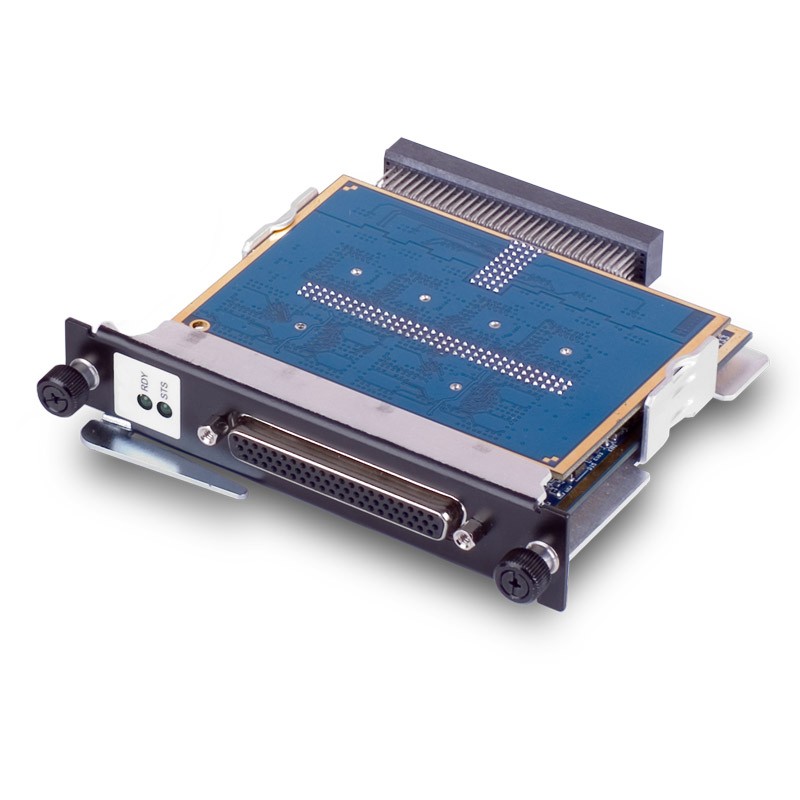

The DNA/DNR/DNF-DIO-433 are a 32 channel, digital output board, compatible with UEI’s systems. Each channel is configured as a current source and switches voltages between 3.3 and 36 VDC. Each channel is rated for continuous operation at 600 mA with an output voltage drop of less than 550 mV. The DNA/DNR/DNF-DIO-433 are an ideal digital output interface in a wide variety of data acquisition and control applications.

As part of UEI’s Guardian series, the DNA/DNR/DNF-DIO-433 not only control the digital outputs, its also allow monitoring of each channel’s output voltage and current. This allows the application to detect and flag short and open circuits as well as other “suspicious” behavior.

The Guardian advantage also includes programmable overcurrent protection. The user may select the current and duration of overload (as short as 10 mS) required before the channel is shut down. Each board provides 350 Vrms isolation and update rates to 1 kHz.

Each channel offers a pulse-width-modulated (PWM) “soft-start/stop” capability. This allows power to be applied/removed gradually, greatly increasing the reliability of devices like incandescent bulbs where thermal shock reduces life expectancy.

The DNA/DNR/DNF-DIO-433 are fully supported by the UEIDAQ Framework which provides a simple and complete software interface to all popular programming languages, operating systems and data acquisition and control applications (e.g. LabVIEW, DASYLab, MATLAB).
