DNx-AI-202 - 12-channel, 16-bit, 16 kS/s aggregate, analog input, data acquisition board

DNx-AI-202 - 12-channel, 16-bit, 16 kS/s aggregate, analog input, data acquisition board
Main features
  • 12 differential current inputs
  • 16-bit resolution
  • Max sampling rate to 16 kS/s
  • Autocalibration
  • Input ranges ±150 mA, ±15 mA, ±1.5 mA (covers industrial ranges 0-20mA and 4-20mA)
  • Analog front end isolated from digital circuitry

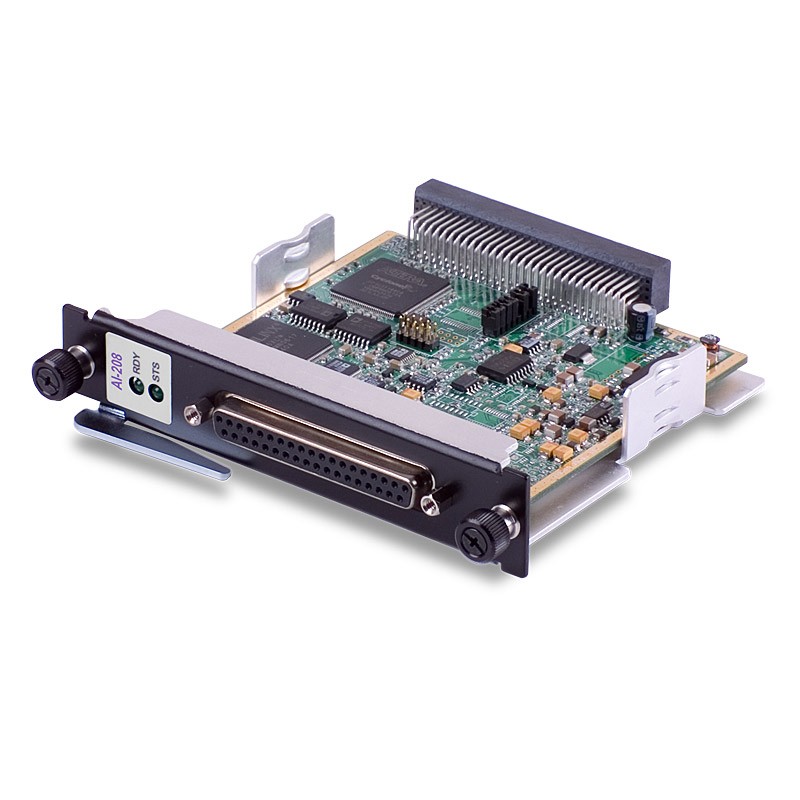

UEI card DNx-AI-202 16-bit 16Ks/s for all channels

Technical specifications

The UEI manufacturer’s card, DNX-AI-202 is a 12-channel differential analog acquisition card, maximum sampling current of 16Ks/s s for all channels, with a resolution of 16 bits and three input ranges of + -150 mA, + -15 mA and + -1.5 mA (covering the ranges 0-20 mA and 4-20 mA). A channel can be sampled up to 16 ks/s, the maximum throughput of the card being 16 Ks/s, so applications using multiple channels will reduce the sample rate per channel (eg 1.33 Ks/s for 12 channels, 2.6 ks/s for 6 channels, etc.). The card has ± 40V surge protection, 2000V ESD powered or not. Max current 20 mA.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:

– DNA-AI-202 for Cubes
– DNR-AI-202 for Racks
– DNF-AI-202 for the FLATRACK

Card usable with the UEILogger.
