DNx-AI-201-100 - 24-channel, 16-bit, 100 kS/s aggregate, analog input, data acquisition

DNx-AI-201-100 - 24-channel, 16-bit, 100 kS/s aggregate, analog input, data acquisition
Main features
  • 24-channels (24 single-ended/12 differential)
  • 16-bit resolution
  • Max sampling rate to 100 kS/s
  • ±15V input range
  • Gains of 1, 2, 5 and 10

UEI card DNx-AI-201-100 16-bit 100Ks/s for all channels

Technical specifications

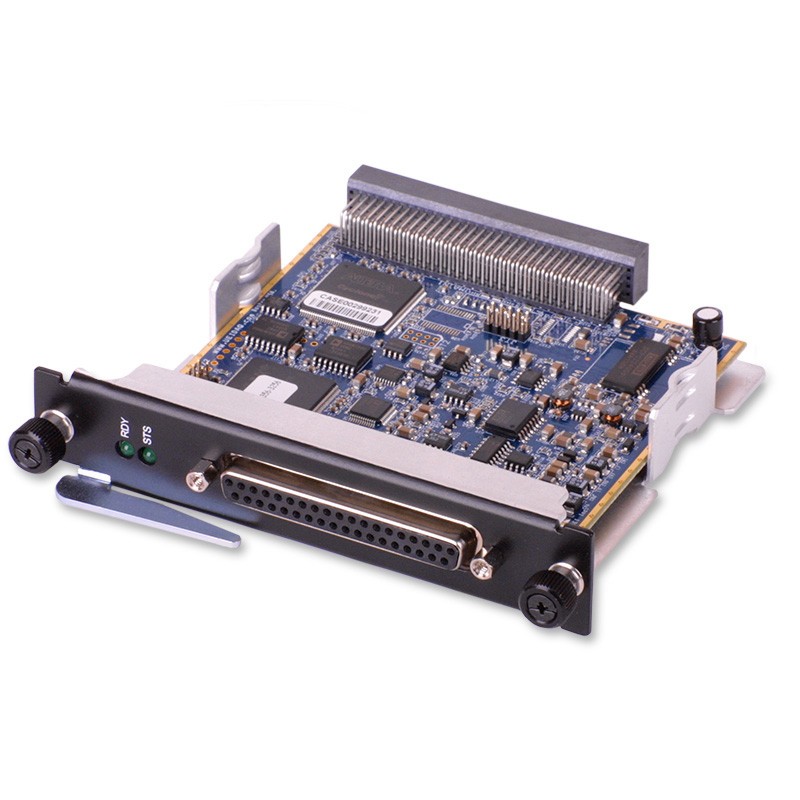

The UEI manufacturer’s board, DNX-AI-201-100 is a 12 differential channels or 24 single-ended multiplexed analog acquisition board with a maximum sampling frequency of 100Ks/s for all the channels, with a 16-bit resolution and an input range of +/- 15 Volt. A programmable gain of 1,2,5 and 10. A channel can be sampled up to 100 ks/s the maximum throughput of the card is 100 Ks/s, so applications using multiple channels will reduce the frequency of ‘sampling per channel (for example, 8.33 Ks/s for 12 channels, 16.6 ks / s for 6 channels, etc.). The card has ± 40V surge protection, 2000V ESD powered or not.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:

– DNA-AI-201-100 for Cubes
– DNR-AI-201-100 for Racks
– DNF-AI-201-100 for the FLATRACK

Card usable with the UEILogger.
