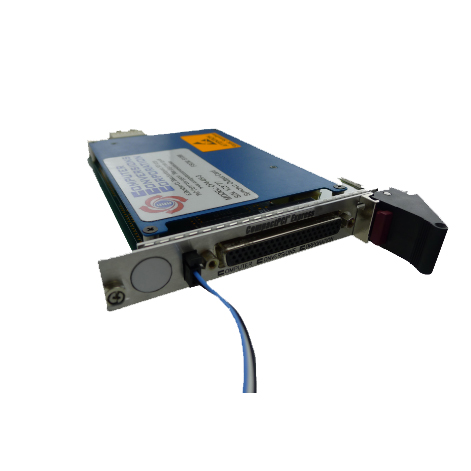

CPe4000 Series - Compact-PCI Express and PXIe Synchro - Resolver - LVDT I/O Cards

CPe4000 Series - Compact-PCI Express and PXIe Synchro - Resolver - LVDT I/O Cards
Main features
  • True Transformer coupled outputs
  • Accuracy +/-1 arc minute
  • Resolution 16 bits, to 24 bits multispeed
  • Programmable velocity/rotate
  • Programmable acceleration
  • True wrap-around self test continuous , @ point of load
  • Designed to facilitate redundancy applications wrap around test can monitor sister card locatedin a different location, or whatever card or synchro active on the output lines.
  • Ouputs faciltate large signal miss-match
  • Drives +/-90 degree phase shift without having to program on-site
  • Extensive built-in-test self-test (BIST).
  • Full external synchro amplifier support : bit report, enables, and wrap around testing.

Computer Conversions’ CPe4000 Series are CompactPCI-Express (cPCIe) and PXI Express (PXIe) compliant: Synchro, Resolver, and LVDT/RVDT I/O Cards (predominantly output cards), with GEN1 and GEN 2 PCI Express interface, designed for accurate and reliable commercial, industrial and COTS-Mil. applications in test, simulation, motion control and shipboard data distribution. The CPe4000 Series drive up to 4 channels of Synchro, Resolver, 3-wire LVDT/RVDT outputs, or up to 8 channels of 2 wire LVDT/RVDT AC Sensor output sets.

Additionally up to 2 channels of Synchro, Resolver or LVDT inputs are available for applications requiring both input and output channels on a single card.
