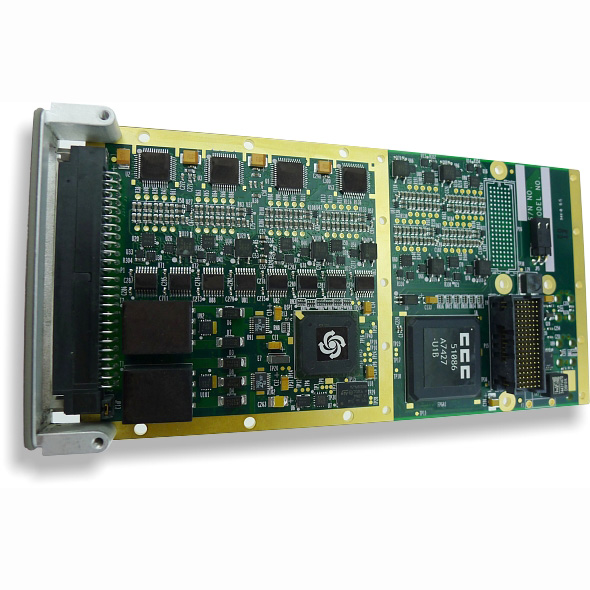

CCC-XMC - 8 Input Synchro / Resolver & LVDT XMC Card

CCC-XMC - 8 Input Synchro / Resolver & LVDT XMC Card
Ask for a quote
Demander un devis
Main features
    • 8 Input Channel Programmable Single or Multi-Speed Resolver, Synchro, 2/3/5 Wire RVDT / LVDT
    • Wideband: 30-10KHz. Reference
    • Autorange: 2-28.6V, 26-115V. Signals
    • Resolution: 16 Bits Single Speed to 24 Bits Multi-Speed
    • Accuracy: +/- 1 Arc Minute ( Self-Calibrating )
    • Programmable Multi-Speed Ratios: 2-255
    • 1500 Volt Bus Isolation
    • Digital Velocity +/ – 100RPS
    • Powered by +5 / +12V and 3.3V from PCIe Bus
    • Supports PCIe Through P15 Connector
    • Synthetic reference compensates for phase shift

The Computer Conversions Corporation XMC Series are 8 Channel Synchro / Resolver / LVDT / RVDT Input cards manufactured in an AS9100D certified facility in compliance with the VITA 42.3 PCIe for XMC specification.

These cards are ideally suited for industrial, military defense, COTS military, and commercial applications such as radar, targeting, aircraft test beds, simulation, production lines, or any application requiring accurate position feedback.

The 8 input channels can be configured in the field as singlespeed synchro / resolver / LVDT / RVDT inputs. 4 channel multi-speed synchro / resolver capability is possible using adjacent pairs of inputs with multi-speed ratios from 2 – 255
