ATS9440 - PCI Express digitizer, 4 channels 125 MS/s 14 bit

ATS9440 - PCI Express digitizer, 4 channels 125 MS/s 14 bit
Main features
  • 125 MS/s Real Time Sampling per channel
  • 1.6 GB/s throughput across PCIe x8 bus
  • 4 Channels sampled at 14 bit resolution
  • External clock from 125 MHz to 1 MHz
  • Up to 65 MHz full power bandwidth
  • ±100 mV to ±4 V Input Range
  • 65 dB Signal to Noise Ratio
  • NIST Traceable Calibration
  • Continuous Streaming Mode
  • Up to 2 Gigasamples of Dual-Port Memory
  • Trigger Input & Auxiliary I/O connectors
  • Half-Length PCIe x8 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C++/C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9440 : PCI Express digitizer, 4 channels 125 MS/s 14 bit

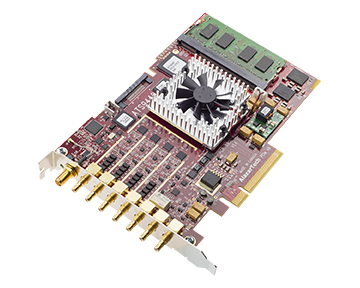

AlazarTech ATS®9440 is an 8-lane PCI Express (PCIe x8), quad-channel, high-speed, 14-bit, 125 MS/s waveform digitizer card capable of streaming acquired data to PC memory at rates up to 1.6 GB/s or storing it in its deep on-board dual-port acquisition memory buffer of up to 2 Gigasamples.

Each ATS9440 board has four Analog-to-Digital converter (ADC) chips that are clocked simultaneously using a low-jitter VCO to provide absolute synchronization.
SMB connectors are used to increase the I/O density on the back-panel of ATS9440.

Up to four ATS9440 boards can be configured as a Master/Slave system to create a simultaneous sampling system of up to 16 input channels.

Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to PC memory or hard disk.
ATS9440 is supplied with AlazarDSO software that lets the user get started immediately without having to go through a software development process. Users who need to integrate the ATS9440 in their own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating systems.

All of this advanced functionality is packaged in a low-power, half-length PCI Express card
