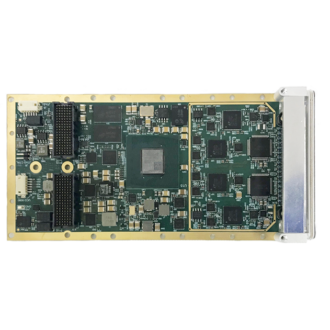

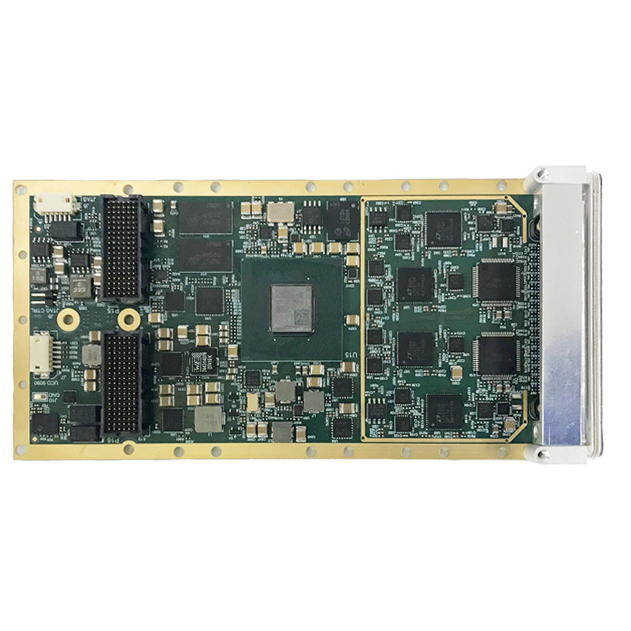

XA-Servo - The XA-Servo is an XMC IO module featuring sixteen 18-bit, up to 500kSPS high-precision SAR A/D channels with high input impedance and remote ground sensing and sixteen 16-bit up to 2.5MSPS D/A channels with 4μs settling time, +/-10mA guaranteed output current designed for industrial, scientific, control, test and measurement applications.

XA-Servo -
Main features
  • 16x 18-bit simultaneously sampling 500 kSPS A/D channels
  • Two programmable Input Ranges (+/-5V and +/-10V) with Remote Ground Sensing
  • 1 MΩ Input Impedance
  • Overvoltage Input Clamp With 9-kV ESD
  • DNL: ±0.5 LSB typ.; INL: ±2.0 LSB typ.
  • SNR: 94 dB typ.; THD: −109 dB typ.
  • On-Chip Digital Filter for Oversampling (OS)
  • 24 kHz typ. 3 dB Bandwidth (±10-V Input, no OS)
  • 16x 16-bit up to 2.5 MSPS D/A channels with 6 software programmable Output Ranges:
    Unipolar: 0V to 5V, 0V to 10V
    Bipolar: ±2.5V, ±5V, ±10V, –2.5V to 7.5V
  • 4μs Settling Time to ±1 LSB
  • +/-10 mA min Load Current
  • Output Short Current protection
  • 50 Ω Output Impedance
  • DIO on P16 (19 differential pairs)
  • Xilinx Artix-7 FPGA
  • DDR3 Memory
  • PCI Express 2.0 XMC Module (75×150 mm)n

The XA-Servo is an XMC IO module featuring sixteen 18-bit, up to 500kSPS high-precision SAR A/D channels with high input impedance and remote ground sensing and sixteen 16-bit up to 2.5MSPS D/A channels with 4μs settling time, +/-10mA guaranteed output current designed for industrial, scientific, control, test and measurement applications.

  • Automatisation et contrôles industriels
  • Systèmes d’acquisition de données multicanaux
  • Équipements scientifiques et industriels
  • Test et mesure
