USB-204 - Multifunction DAQ-USB with 8 A/D 12-Bit, 500KS/s

USB-204 - Multifunction DAQ-USB with 8 A/D 12-Bit, 500KS/s
Clear
Main features
  • 8 SE analog inputs
  • ±10 V input range
  • 12-bit resolution
  • 500 kS/s sample rate
  • 8 digital I/O
  • One 32-bit counter
  • Board-Only OEM Version Available
USB-204 Data acquisition USB device with 8 SE analog inputs, 12-bit resolution, 500 kS/s and 8 digital I/O 183 €
USB-204-OEM USB-based OEM data acquisition board with 8 SE A/D, 12-bit resolution, 500 kS/s and 8 digital I/O 172 €

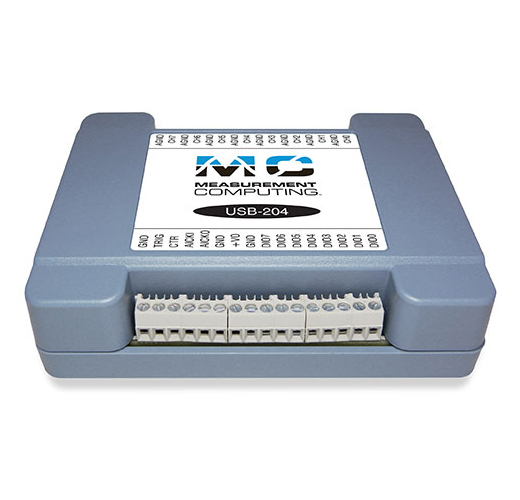

USB-204: DAQ-USB MCC with 8 A/D 12-Bit, 500KS/s

Measurement Computing’s (MCC) USB-204 is a DAQ-USB featuring 8 single-ended multiplexed analog inputs, 12-Bit resolution with a fixed input range of ± 10 V with a maximum sample rate of 500KS/s aggregate. The total acquisition rate for all channels cannot exceed 500KS/s.

USB-204 has eight TTL digital I/O. Each digital channel is software selectable as input or output. When digital channels are configured as input, you can use them to detect the state of a TTL level input. An internal jumper allows digital I/O to be configured in pull-up or pull-down (default) mode. Finally, the USB-204 has a 32-Bit TTL level event counter that accepts inputs up to 1 MHz.

The USB-200 Series is factory-calibrated using a NIST-traceable calibration process. Specifications are guaranteed for one year.

Included Software

  • TracerDAQ® for acquiring and displaying data and generating signals
  • InstaCalTM software utility for installing, configuration, and testing
  • Universal Library includes support for Visual Studio® and Visual Studio®.NET, including examples for Visual C++®, Visual C#®, and Visual Basic®.NET
  • ULx for NI LabVIEWTM Library of VIs and example programs to speed your NI LabVIEW development
  • Universal Library for Android® includes support and examples for the Android 3.1 platform (API level 12) and later
  • Linux® Support for MCC DAQ products
  • Python™ Support for MCC DAQ Products

Optional Software

  • DAQamiTM – data acquisition companion software for acquiring data and generating signals
  • DASYLab®2020 Software lets you interactively develop PC-based data acquisition applications by simply attaching functional icons
  • TracerDAQ®Pro – Out-of-the-box virtual instrument suite with strip chart, oscilloscope, function generator, and rate generator – professional version
  • MATLAB® Support for MCC Products – Software Environment for Data Acquisition, Data Analysis, and Application Development

Find all MCC ‘s DAQ-USB modules on our website
