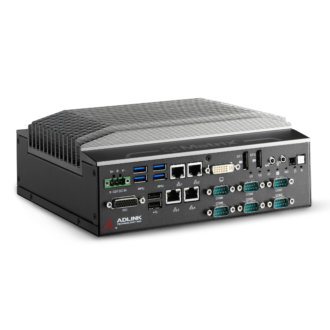

MXE-5500 - 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer

MXE-5500 - 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Fanless Embedded Computer
Clear
Main features
  • Built-in ADLINK SEMA 3.0 management solution
  • 6th Gen Intel® Core™ i7/i5/i3 Processors and QM170 chipset
  • Single-side I/O with two SATA drive bays for easy drive swapping
  • 1x DVI-I, 2x DisplayPort, 4x USB 2.0, 4x USB 3.0, 4x GbE ports, 6x COM ports, and 8x isolated DI/O
  • Rich Storage Options, 2x 2.5″ SATA III (6.0 Gb/s) bay, 1x M.2 2280 slot, 1x CFast socket
  • Versatile connection via 2x mPCIe slot and 2 x USIM slot
  • Rugged construction delivering fanless -20°C to 60 (70)°C operability (w/industrial SSD)
  • EN 50155 compliant
MXE-5501 Intel® Core™ i7-6820EQ fanless embedded computer 2063 €
MXE-5501/M8G Intel® Core™ i7-6820EQ fanless embedded computer, 8 GB DDR4 2113 €
MXE-5501/M16G Intel® Core™ i7-6820EQ fanless embedded computer, 16 GB DDR4 2217 €
MXE-5501/M32G Intel® Core™ i7-6820EQ fanless embedded computer, 32 GB DDR4 2327 €
MXE-5502 Intel® Core™ i5-6440EQ fanless embedded computer 1822 €
MXE-5502/M8G Intel® Core™ i5-6440EQ fanless embedded computer, 8 GB DDR4 1873 €
MXE-5502/M16G Intel® Core™ i5-6440EQ fanless embedded computer, 16 GB DDR4 1978 €
MXE-5502/M32G Intel® Core™ i5-6440EQ fanless embedded computer, 32 GB DDR4
MXE-5503 Intel® Core™ i3-6100E fanless embedded computer 1684 €
MXE-5503/M8G Intel® Core™ i3-6100E fanless embedded computer, 8GB DDR4 1733 €
MXE-5500-PSU 160 W industrial grade AC-DC adapter (-20 to 60°C) 68 €
MXE-5500-OPT

ADLINK’s new Matrix MXE-5500 series of rugged quad-core fanless computers features the 6th generation Intel® Core™ i7/i5/i3 processors, delivering outstanding performance with robust construction.

The MXE-5500 series accommodates rich I/O capabilities in a compact system size, with two DisplayPort, one DVI-I (supporting both DVI and VGA signals), four GbE by Intel network interface controllers, four each USB 2.0 and USB 3.0, eight isolated DI/O, and six COM ports, four of which are BIOS-configurable among RS-232/422/485. In addition, with dual hot-swappable 2.5 SATA drive bays, one CFast port and one M2.2280, providing versatile storage options to a wide range of applications. Dual mini PCIe slots and USIM sockets empower the MXE-5500 as a communications hub for a variety of wireless connections, such as BT 4.0/WiFi and 3G.

Leveraging proprietary mechanical engineering, the MXE-5500 series continues to offer all the popular features of the popular Matrix E series, including cable-free construction, wide operating temperature ranges, and 5 Grms vibration resistance, having undergone, like all ADLINK Matrix devices, rigorous testing for operational verification.

Combining superior processor performance, wireless capability, and rich, scalable I/O in a compact and robust package, the ADLINK MXE-5500 is an ideal choice for a wide range of applications supporting intelligent transportation, in-vehicle multimedia & surveillance and factory automation applications.

ADLINK’s Matrix MXE-5500 Series rugged fanless embedded computers support IntelR Solid State Drive (SSD) E 5400s Series, offering a power-conserving solution with superior durability, performance and security across a variety of applications.
