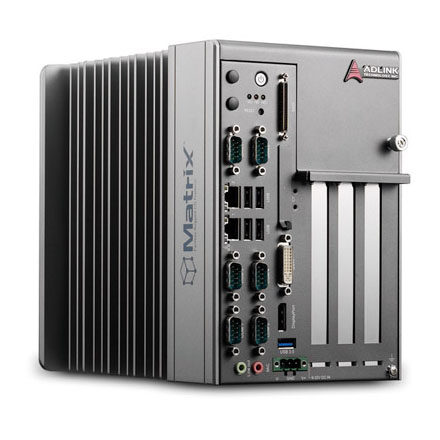

MXC-2300 - Intel® Atom™ processor E3845 Fanless Expandable Embedded PC with PCI/PCIe

MXC-2300 - Intel® Atom™ processor E3845 Fanless Expandable Embedded PC with PCI/PCIe
Clear
Main features
  • Intel® Atom™ processor E3845 with 4C @1.91 GHz SoC
  • 2x DDR3L SO-DIMM, supporting up to 8GB memory
  • 2 PCI + 1 PCIe x4 or 3 PCI expansion slots
  • Built-in dual-port isolated CAN and 16-CH isolated DI and DO
  • 1 DisplayPort + 1 DVI-I
  • 2 Intel GbE ports with teaming function, 1 USB 3.0 + 4 USB 2.0 portsƒÜ
  • 2 software-programmable RS-232/422/485 + 2 RS-232 ports
  • Built-in ADLINK SEMA 2.2 (Smart Embedded Management Agent)é
MXC-2300-3S Intel® Atom™ E3845 Fanless computer, 3 PCI slots, 4 GB DDR3L 939 €
MXC-2300-3E1 Intel® Atom™ E3845 Fanless computer, 1 PCI slot + 1 PCIe 4x, 4 GB DDR3L 960 €
MXC-2300CD-3S Intel® Atom™ E3845 Fanless computer, 3 PCI slots, 1 Mini PCIe, 2 CAN, 16 DIO, 4 GB DDR3L 939 €
MXC-2300CD-3E1 Intel® Atom™ E3845 Fanless computer, 1 PCI + 1 PCIe 4x slots, 1 Mini PCIe, 2 CAN, 16 DIO, 4 GB DDR3L 979 €
MXC-2300-PSU 90 W AC-DC adapter 48 €
MXC-2300-OPT Option hard disk or SSD and option OS to consult us

Featuring the latest Intel® Atom™ E3845 processor (Formerly Bay Trail), the Matrix MXC-2300 series excels with minimal power consumption, exceptional 3D graphics, and powerful media acceleration, delivering a leading improvement in performance and cost- efficiency over any previous generation Atom-based system. Features include dual-port CAN connectivity supported by a Philips SJA1000 controller that can run independently or bridged at the same time, bus arbitration and error detection with auto correction and re-transmission capability, and 16-CH isolated DI/O for general industrial control.
An increased total 3PCI/PCIe expansion slot count allows installation of a variety of off-the-shelf PCI/PCIe cards for configurable applications, and an internal PCI Express Mini Card socket and USIM slot support extension of additional functions, such as wireless connection.

In addition, the MXC-2300 series offers one DisplayPort and one DVI-I port for dual independent display with full HD, four USB 2.0 and one USB 3.0 ports, and 2 GbE LAN ports with teaming function.

With ADLINK?s proprietary SEMA (Smart Embedded Management Agent) tool, the MXC-2300 maximizes manageability and security for a world of applications. Provide efficient remote monitoring of system activity and health in real time, system control over a robust secured channel, and fully manageable complete utilization of system resources.

With its ruggedized architecture, flexibility, and rich I/O capacity, the MXC-2300?s minimal power consumption, abundant features, and leading performance and cost-efficiency make it the embedded system of choice for industrial automation, facility management, and intelligent transportation systems and applications demanding reliability in harsh environments.
