MCC 152 - DAQ-HAT MCC with 2 D/A 12-Bit, simultaneous  and 8 Digital I/O for Raspberry Pi®

MCC 152 - DAQ-HAT MCC with 2 D/A 12-Bit, simultaneous  and 8 Digital I/O for Raspberry Pi®
Main features
  • Two 12-bit simultaneous voltage outputs
  • 5 mA output drive, sourcing
  • 0.8 V/µs slew rate
  • Eight bidirectional digital bits
  • 5V / 3.3V operation; CMOS input thresholds
  • Programmable input polarity
  • Screw terminal connections
  • Ability to stack up to eight MCC HATs on a single Raspberry Pi® for a maximum throughput of 320 KS/s
  • API  for C, C++, Python

MCC 152: DAQ-HAT MCC with 2 D/A 12-Bit and 8 digital I/O for Raspberry Pi®

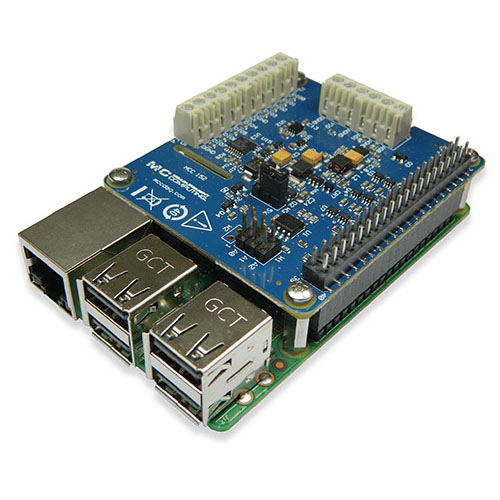

The MCC 152 from Measurement Computing (MCC) is a DAQ-HAT for Raspberry Pi® with 2 analog outputs, simultaneous, 12-Bit resolution with a 0 V to 5 V output range and 5 mA output drive, sourcing.

MCC 152 provides eight bidirectional digital bits. Each digital bit is configurable for pull-up or pull-down, or can be disabled. Each output bit can source 10 mA and sink 25 mA. Users can configure the software to generate an interrupt when the state of a digital input bit changes.
MCC 152 can interface with 3.3 V or 5 V logic types; the voltage is selectable with an onboard jumper. The input polarity is software programmable for normal (active high, default) or inverted logic (active low).

On a Raspberry Pi®, you can stack up to eight MCC HATs providing 64 channels for a maximum throughput of 320 KS/s.

Library and examples provided

An open-source MCC DAQ HAT library (for C / C ++ and Python) is also available with MCC 128. It allows users to develop applications on Linux. The library is available for download on GitHub. Full API and hardware documentation is provided.

The MCC DAQ HAT Library includes example programs developed in C/C++ and Python that users can run to become familiar with the DAQ HAT library and boards; source code is included.

Users can verify MCC 152 functionality out-of-the-box by run-ning the MCC 152 App from the MCC DAQ HAT Manager utility program. This utility requires the Raspbian desktop interface, and is accessible from the Applications menu.


Find all MCC ‘s DAQ-HAT modules on our website

mcc-152 mcc152

Prix HT : 172,00 Shipped within 3 to 4 weeks
