M4X.663x-X4 - PXI Express, 1.25 GS/s 16 bit Arbitrary Waveform Generator

M4X.663x-X4 - PXI Express, 1.25 GS/s 16 bit Arbitrary Waveform Generator
Main features
  • Up to 1.25 GS/s on 2 channels
  • Fast 16 bit arbitrary waveform generator
  • Simultaneous signal generation on all channels
  • Output level ±160 mV to ±4 V (1.25 GS/s) into High Impedance
  • Output level ±80 mV to ±2.0 V (1.25 GS/s) into 50 Ohm
  • Fixed trigger to output delay
  • Single-Shot, Loop, Gated, Sequence Mode
  • Marker Output, Digital Outputs
  • PXIe x4 Gen 2 Interface
  • Sustained streaming mode more than 1.7 GB/s
  • Works with all PXIe and PXI hybrid slots
  • PXIe 3U format, 2 slots wide

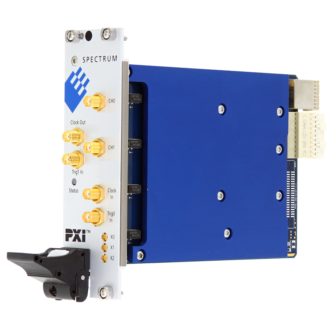

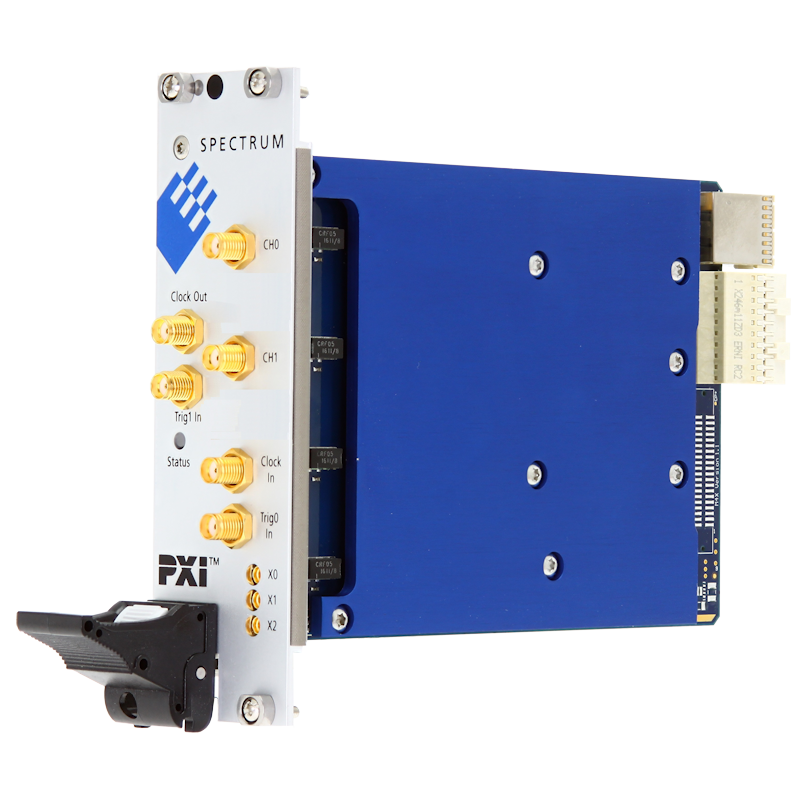

PXI Express card, Arbitrary Waveform Generator, 2 channels 1.25 GS/s 16 bit
PXI Express card, Arbitrary Waveform Generator, 1 channel 1.25 GS/s 16 bit

The M4x.66xx-x4 series arbitrary waveform generators (AWG) deliver the highest performance in both speed and resolution. The series includes PXI Express (PXIe) cards with either one, two or four synchronous channels. The large onboard memory can be segmented to replay different waveform sequences. The AWG features a PCI Express x4 Gen 2 interface that offers outstanding data streaming performance. The interface and Spectrum’s optimized drivers enable data transfer rates in excess of 2.8 GB/s so that signals can continuously replayed at a high output rate. While the cards have been designed using the latest technology they are still software compatible with the drivers from earlier Spectrum waveform generators. So, existing customers can use the same software they developed for a 10 year old 20 MS/s AWG card and for an M4x series 625 MS/s AWG.
