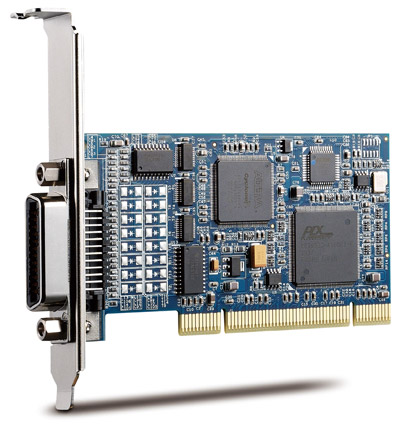

ADLINK LPCI-3488A GPIB controller interface card, fully compatible with the IEEE 488 instrumentation control and communication standard, is capable of controlling up to 14 stand-alone instruments via IEEE 488 cables. It is designed to meet the requirements for high performance and maximum programming portability. The built-in 2KB FIFO and a block transfer mode provide up to 1.5 MB/s GPIB transfer rate. With the APIs that are compatible with NI-488.2* and VISA support, the LPCI-3488A provides the greatest compatibility with your existing applications and instrument drivers. (* NI-488.2 mentioned herein is the trademarks and properties of National Instruments Corporation.)
LPCI-3488A - Low-profile High-Performance IEEE488 GPIB Interface for PCI Bus
Main features
- Supports a 32-bit 3.3V or 5V PCI bus
- Low-profile PCI MD1 form factor
- Fully compatible with IEEE 488 standard
- Up to 1.5MB/s data transfer rates
- Built-in 2 KB FIFO for read/write operations
- Provides APIs compatible with NI-488.2* driver software
- Supports industrial-standard VISA library
- Interactive utility for testing and diagnostics
Prix HT : 415,00€ Shipped within 1 to 2 working days
