GPT-15000 - Electrical Safety Analyzer

GPT-15000 - Electrical Safety Analyzer
Clear
Main features
  • 500VA AC Test Capacity (short circuit current > 200 mA)
  • Comply with IEC 61010-2-034
  • 7”TFT LCD
  • Manual / Auto Mode
  • RMS Current Measurement
  • Zero Crossing Turn-on Operation
  • Controllable Ramp-up & Ramp-down Time
  • Capacitive Load Testing Capability up to 47μF
  • Statistics & Analysis Function
  • Sweep Function for DUT Characteristic Analysis
  • Convenience Listed AUTO mode easy to read result & judge
  • Internal Storage & USB Storage available
  • Barcode Function available
  • Setting Data Export / Import
  • Rear panel output available
  • Interface : RS-232C, USB host/device, Signal I/O and option GPIB or LAN
  • Universal power input

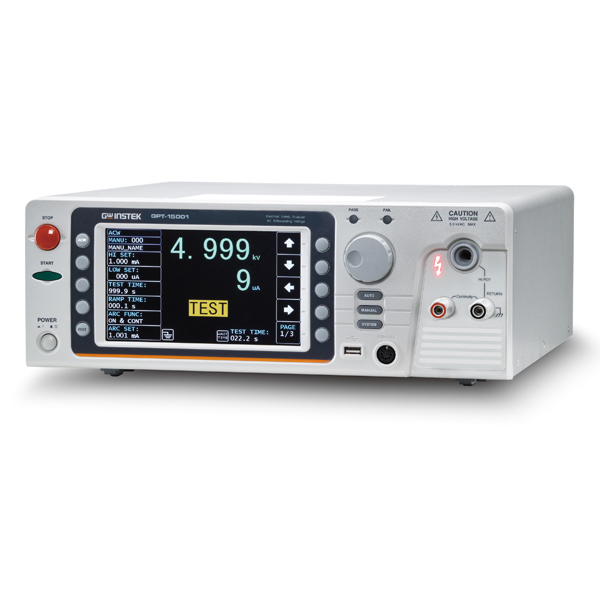

GPT-15001 AC 500VA AC Withstanding Voltage Electrical Safety Analyzer
GPT-15002 AC 500VA AC/DC Withstanding Voltage Electrical Safety Analyzer
GPT-15003 AC 500VA AC/DC/IR Electrical Safety Analyzer
GPT-15004 AC 500VA AC/DC/IR/GB Electrical Safety Analyzer

GW Instek introduces the flagship model (500VA output capacity) safety analyzer-the GPT-15000 series, which is the first safety analyzer in the world to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use – particular requirements for measurement equipment for insulation resistance and test equipment for electric strength), which stipulates that the requirements of the software and hardware interfaces must be followed while designing high voltage and insulation resistance test and measurement instruments so as to ensure that users are provided with necessary protection and warning while using the instruments.

Analyze Your Safety Tests

  • Meets IEC 61010-2-034 design requirements
  • High Accuracy and High Resolution Testing Performance
  • Flexible supplementary testing mechanism
  • Statistic and analysis
  • Sweep and tabular automatic test
  • Complete test data retrieval interface
