EX1403A - Acquisition system for Bridge/Strain gauge, resistance/RTD and voltage, 16 simultaneous channels, 128 KS/s

EX1403A - Acquisition system for Bridge/Strain gauge, resistance/RTD and voltage, 16 simultaneous channels, 128 KS/s
Main features
  • 16-Channel Strain/Bridge, Ohms/RTD & Voltage Measurements
  • 24-bit, delta-sigma ADC, simultaneous sampling
  • Programmable Sample Rate up to 128 KS/s
  • Full, Half & Quarter Bridge with 120Ω, 350Ω & 1kΩ bridge completion
  • Voltage Excitation: 0.5V to 10V
  • Current Excitation: 0.46mA
  • 2-Wire & 4-Wire Ohms/RTD
  • TEDS Support
  • RJ-45 Input Connectors
  • Built in Self-calibration and Shunt Calibration
  • LXI Ethernet Interface
  • IEEE 1588 Synchronization with data time stamping
  • Power over Ethernet PoE or 10–30 V DC input
  • Built-in Parallel Data Streaming
  • Full-featured Embedded Web Interface
  • Compact 1U Half-rack Form Factor

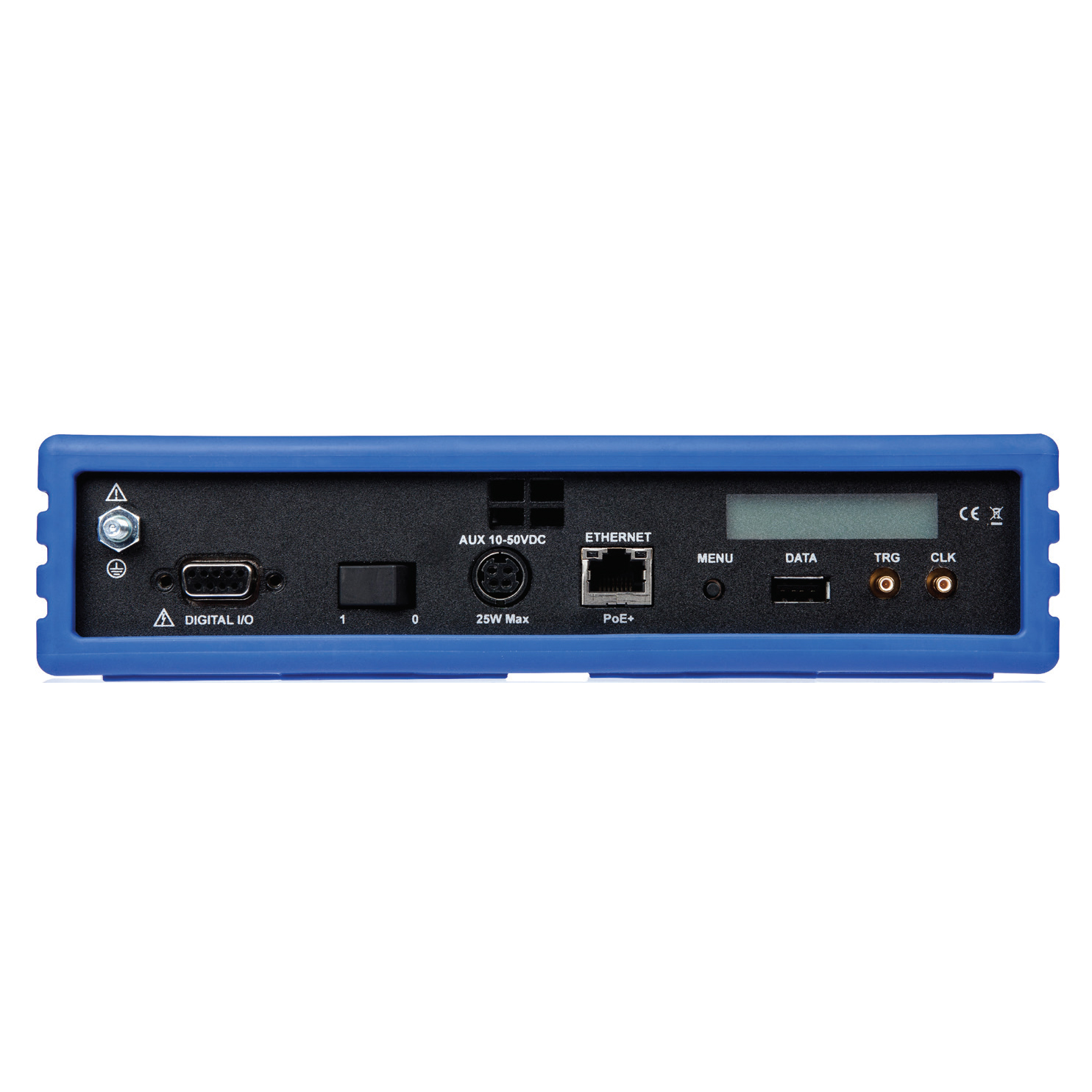

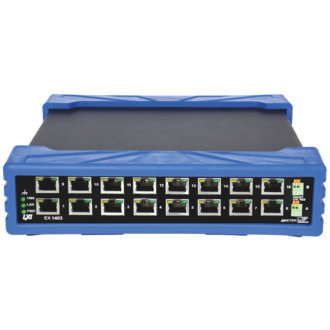

EX1403A: Bridge/Strain gauge, resistance/RTD and voltage acquisition system, 16 channels, 24-Bit up to 128 KS/s

The VTI Instrument EX1403A is a precision (24-Bit) strain gauge and bridge instrument. This instrument sets a new standard for strain and bridge measurements, delivering the highest performance measurements possible while controlling overall test hardware costs.

The EX1403A has 16 simultaneous channels, 24-Bit resolution, configurable channel by channel for bridge/strain gauge, resistance/RTD and voltage measurements. The EX1403A samples data synchronously across all channels up to a rate of 128 KS/s per channel.

It incorporates signal conditioning and bridge completion, 1/4 bridge (120, 350, 1k and user defined), ½ and full bridge. The excitation is also programmable, all configurable by software channel by channel as well as the filtering.

LXI & PoE Instrument

The EX1403A supports easy integration and synchronization of multiple devices through the IEEE-1588 v2 Precision Time Protocol standard for synchronization, providing an architecture that can be scaled from tens to thousands of channels. Multiple instruments can be easily distributed extremely close to the measurement points of interest, reducing the run length of analog cabling and minimizing errors induced by noisy environments.

Additionally, Power Over Ethernet (PoE) enables a single cable to be used for both power and data capture. All measurement data is returned with IEEE-1588 timestamp codes with typical accuracies of <200nS, ensuring that acquired data is tightly correlated across the test article.

Software and Driver

Web Interface :

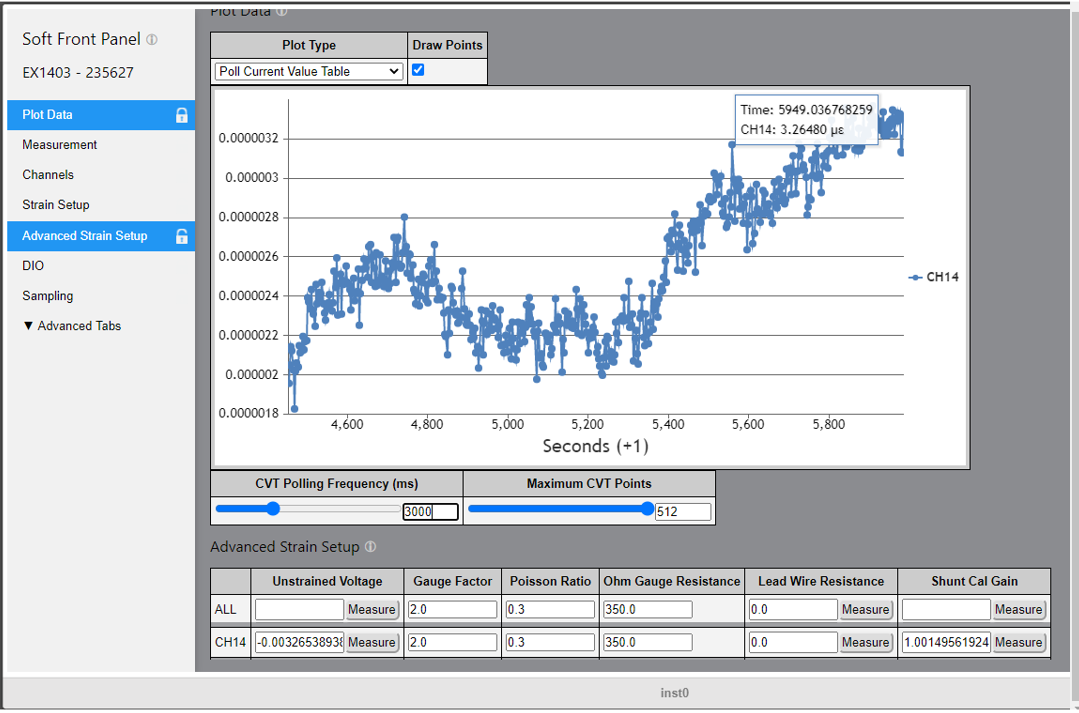

The EX1403A allows full control of the instrument via a web interface, simply type in the IP address of the EX1403A into the web browser of the ethernet connected device and you can set-up, display data graphicly, and configure as a datalogger with no external software required.
Driver :
Windows et Linux Support:
Find all the downloads on the page:  EX1403A de VXI Instruments
Software option:

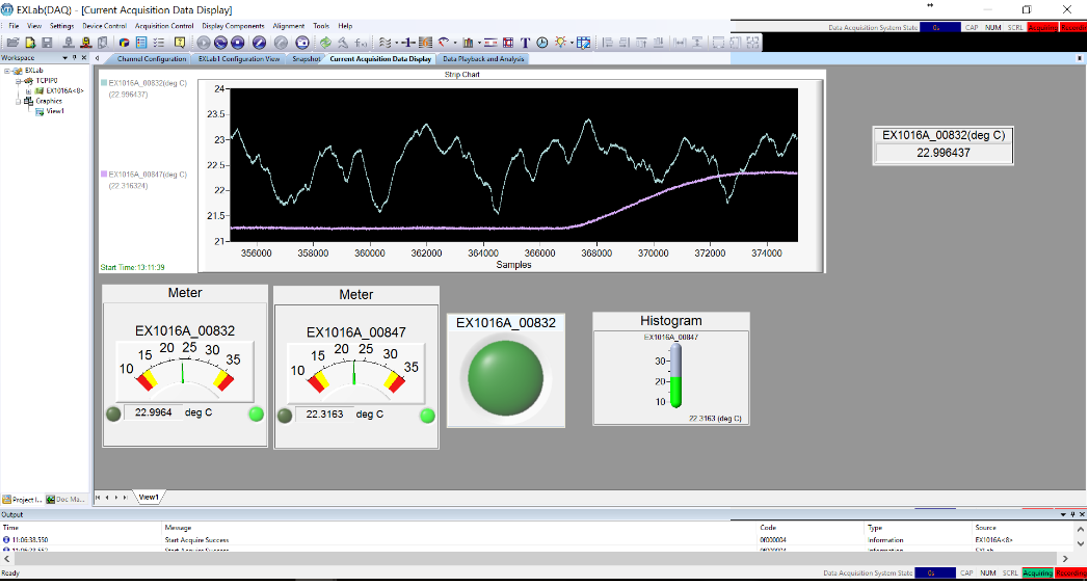

EXLab TurnKey Software

  • Easy to use Spreadsheet configuration
  • Flexible Realtime data displays
  • Data can be viewed and exported in a number of data formats
  • Provides extended features such as “snapshot”, calculated channels and Rosette support, event handling and alarms
  • Multiple Configurations and Options

Find all the products of the EX14xx family on our website

• Airframe structural and fatigue test
• Rocket and satellite structural test
• Wind tunnel flight load test
• General purpose bridge measurements
• Load frame materials testing
