Main features
  • Combines an industry standard COM Express CPU module with XMC IO module in a compact, stand-alone design
  • Powerful performance using Intel-based CPU core via COM Express
  • Small form factor: 150 x 75 mm
  • Rugged, stand-alone operation
  • Able to operate headless
  • Runs Windows or Linux applications including RTOS variants
  • Configurable IO uses standard XMC IO modules —add anything from RF receivers to industrial control modules
  • PCI Express IO site (VITA 42.3) delivers >1600 MB/s to CPU memory
  • Supports all Innovative XMC I/O modules including Xilinx Ultrascale FPGAs
  • USB 3.0/2.0 x1, USB 2.0 x2, SATA x2, mini DisplayPort
  • Optional connectivity via 1 Gb Ethernet link
  • Boots from 32 GB eMMC
  • On-board XMC FPGA JTAG programmer
  • 6-14V DC operationC

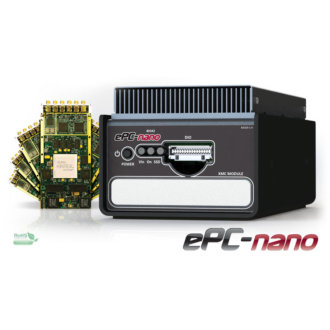

The ePC-nano is a user-customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance XMC modules. With its modular IO, scalable performance, and easy to use PC architecture, the ePC-nano reduces time-to-market while providing the performance you need.

Distributed Data Acquisition: Put the ePC-nano at the data source and reduce system errors and complexity. Limitless flexibility – simply replace the XMC module and get different functionality.

Uniquely Customizable: XMC site for IO, user-programmable FPGA for IO interfaces, triggering and timing control, USB ports. Supported XMC Modules.

Remote or Local Operation: Continuous data streaming up to 500 MB/s (local SSDs) or 1 Gb/s Ethernet.

Rugged: Runs from embedded eMMC drive in a compact, rugged 150x75mm footprint that is ready for embedded operation.

Two Generic Serial Ports for system extension.

6-14V DC Operation: Perfect for portable or automotive battery operated data loggers or waveform generators.
