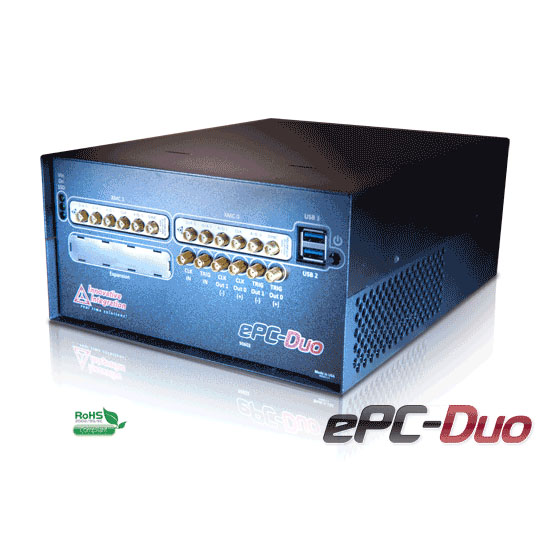

ePC-Duo - Windows/Linux Embedded Computer with Dual XMC IO Sites and Integrated Timing Support

ePC-Duo - Windows/Linux Embedded Computer with Dual XMC IO Sites and Integrated Timing Support
Main features
  • Combines an industry-standard COM Express CPU module with dual XMC I/O modules in a compact, stand alone design
  • Small form factor: 3.3” H x 7.7” W x 9.8” D
  • Stand-alone operation: able to operate diskless and headless
  • Windows, Linux and RTOS support
  • Dual PCI Express XMC IO module sites. Add anything from RF receivers to industrial control modules.
  • PCI Express IO sites (VITA 42.3) deliver >3400MB/s to CPU memory**
  • Integrated timing and triggering support for IO includes optional GPS, IEEE-1588 or IRIG -disciplined clock
  • Supports Innovative X3, X5, and X6 I/O module features for private data channels, triggering and timing features
  • USB3, 10 Gb Ethernet, SATA3 x4, DisplayPort, HD audio
  • System expansion supported with dual 10 GbE ethernet links
  • Up to 4 SSD (2.5 in)
  • IEEE 1588 network timing, GPS option.
  • FPGA for custom I/O and interfaces
  • AC or DC operation** Data rate dependent on the COM Express module capabilities

The ePC-Duo is a user-customizable, turnkey embedded instrument that includes a full Windows/Linux PC and supports a wide assortment of ultimate-performance XMC modules. With its modular IO, scalable performance, and easy to use PC architecture, the ePC-Duo reduces time-to- market while providing the performance you need.

Distributed Data Acquisition – Put the ePC-Duo at the data source and reduce system errors and complexity. Optional GPS-synchronized timing, triggering and sample control is available for remote IO. Limitless expansion via multiple nodes. Up to 4 HDD for data logging.

Uniquely customizable – Dual XMC sites for I/O, user- programmable FPGA for IO interfaces, triggering and timing control, USB ports.

Remote or Local Operation – Continuous data streaming up to 2000MB/s (quad local SSDs or dual 10 GbE LAN). Optional, stand-alone, autonomous operation with GPS or network -synchronized sampling.

Rugged – SSD boot drive support in a compact, rugged 250x195mm footprint that is ready for embedded operation.

8-36V DC-Only Operation – Perfect for portable or automotive data loggers or waveform generators.
