EMX-75xx - 64-CH DIO, Source/Sink, 60 V max static I/O

EMX-75xx - 64-CH DIO, Source/Sink, 60 V max static I/O
Ask for a quote
Demander un devis
Main features
  • Static digital input/output
  • 64 channels total (8 ports of 8 bits each), bidirectional
  • High current (300 mA), on each channel
  • Voltage inputs and outputs from 2 V to 60 V on each channel
  • Embedded soft front panel interface
  • Common IVI software drivers available
  • Multiple digital logic levels: LV TTL, TTL
  • Optical isolation at 1000 V

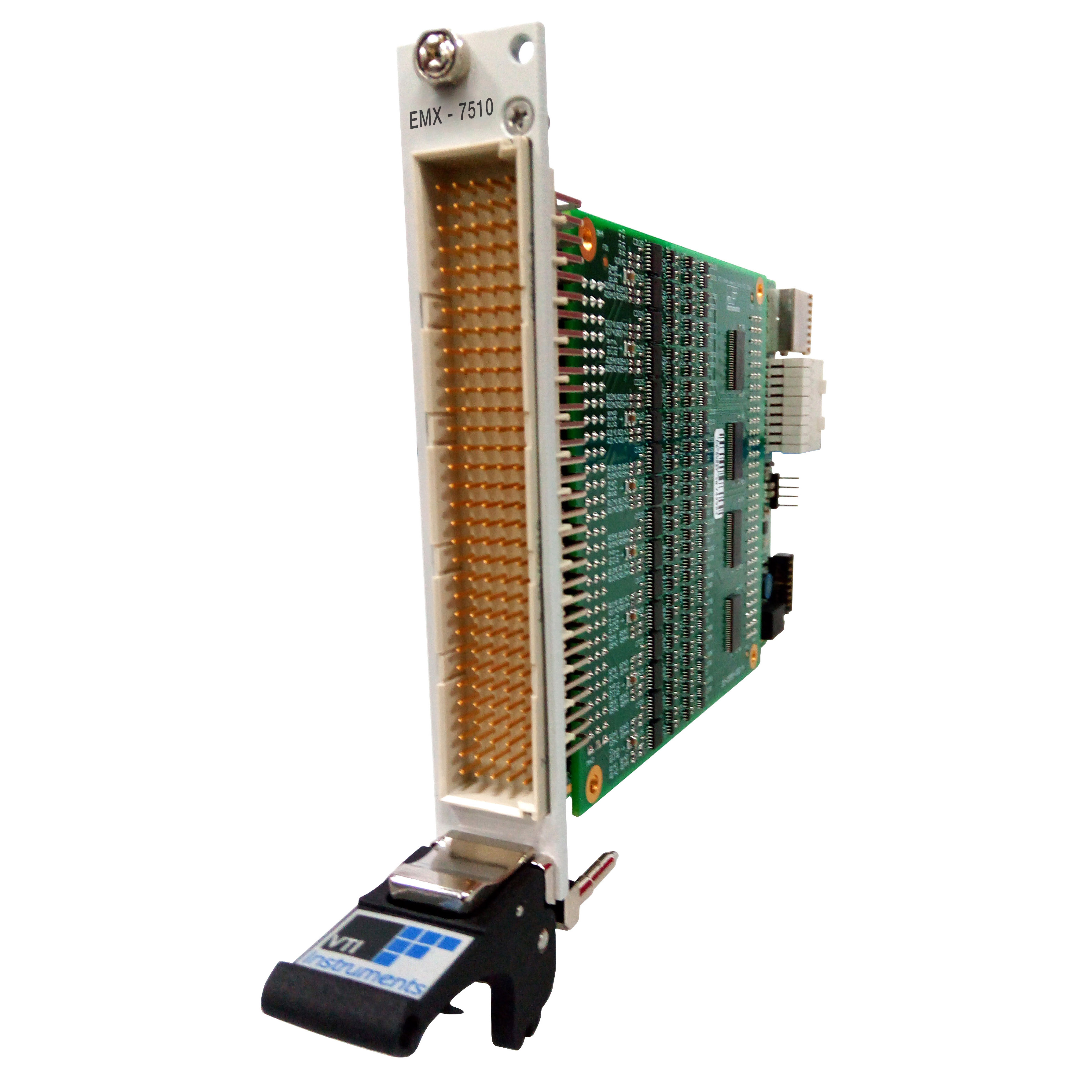

EMX-7510 64-CH DIO, Source/Sink, 60 V max Static I/O
EMX-7511 64-CH, DIO TTL, Static I/O
EMX-7512 64-CH, DIO LV TTL, Static I/O
EMX-7513 32DI/32DO, Source/Sink, 60 V max, Isolated Static I/O
EMX-7514 64 DO, Source/Sink, 60 V max, Isolated Static I/O
EMX-7515 64 DI, 60 V max, Isolated Static I/O

The EMX-75XX Series adds to AMETEK VTI Instruments’ growing PXI Express (PXIe) Core Automated Test Equipment (ATE)TM family as a high-current, high-density digital input/output line of modules. Unlike many static I/O PXIe modules on the market today, the EMX-75XX Series can sink or source up to 300 mA on each channel. Delivering beyond just 2 V and 5 V, engineers can program the cards to support a wide range of voltages, including 2 V and 28 V, +15 V and -15 V, and more—on every channel, for both input and output.

Because the EMX-75XX Series can deliver a full 300 mA on all of its channels, bidirectionally, engineers no longer have to worry about tailoring it to their application. Program the module and let it run. Need to change a value? Simply reprogram it. There is no longer a reason to swap out components, which typically hinders productivity and efficiency stemming from the additional installation processes. The specialized EMX-7510, EMX-7511, EMX-7512, EMX-7513, EMX-7514, and EMX-7515 variations offer 1000 V isolation and 64 unidirectional channels for specialized applications.

Sourcing components from VTI means that every solution has the same proven signal integrity VTI has consistently delivered for the last 20 years. The EMX-75XX Series builds upon this legacy to accurately deliver signals from the test setup to the rest of the ATE system.

With industry standard software including IVI drivers available, the EMX-75XX Series easily connects to the rest of any ATE configuration.
