DT9826 - 16 Channels, 24 Bit Resolution, USB Measurement Module

DT9826 - 16 Channels, 24 Bit Resolution, USB Measurement Module
Clear
Ask for a quote
Demander un devis
Main features
  • 16 SE analog inputs, 24-bit resolution
  • 41.6 kHz max. sampling speed per channel
  • 500 V galvanic isolation from the PC
  • ±10V input range
  • integrated anti-aliasing filters, signal bandwidth (-3dB) max. 9 kHz
  • 8 digital inputs, can be synchronised with analog I/P sampling rate.
  • 8 digital outputs
  • 2 Counter/Timers (32-bit), can be synchronised with analog I/P sampling rate.
  • Tachometer input support in the A/D data stream for synchronizing measurements.
  • Programmable triggers for analog input operations for maximum flexibility. Choose a software trigger, TTL trigger, or analog threshold trigger.
  • Portable operation. No external power supply needed. Runs on USB power.
  • Supported by all DT-Open Layers for .NET Class Library compliant software to meet any application need.
DT9826-16- USB 16-Channel, 24 Bit, USB Module
DT9826-16-OEM-USB 16-Channel, 24 Bit, USB Module, OEM version

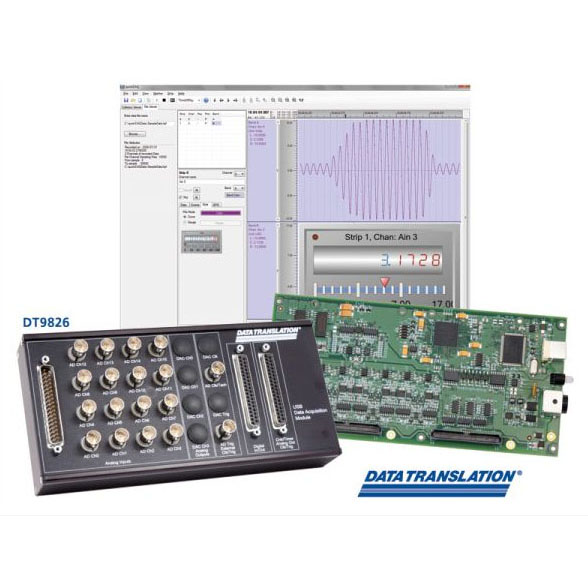

The DT9826 is a high resolution, simultaneous sampling, multifunction data acquisition module for USB. The DT9826 combines high-performance, 24-bit analog measurement, digital I/O, counter/timers, and a tachometer channel onto a single plug-and-play device. Available as a board-level version for OEM embedded test applications, or installed in a metal BNC connection box for easy sensor connections.
