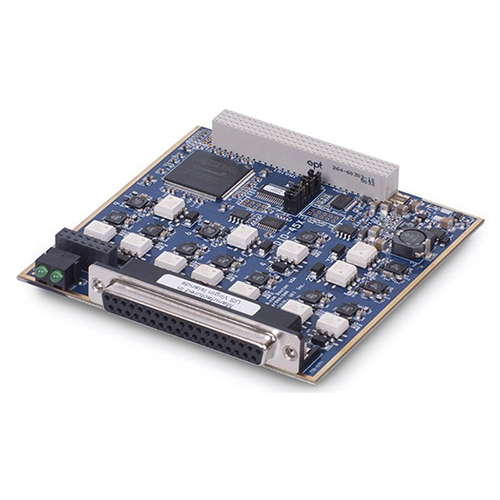

DNx-DIO-463 - 12-Channel solid state relay output board with voltage and current monitoring

DNx-DIO-463 - 12-Channel solid state relay output board with voltage and current monitoring
Main features
  • 2 A continuous output current at 48 VDC or 35 VAC
  • Fully solid state contacts
  • 150 milliohm on resistance
  • Output throughput rate of 125 updates per second
  • Guardian Series diagnostics
    • Programmable overcurrent protection (50 mA to 2 A)
    • Programmable overcurrent duration limits
    • Monitors each channel’s output voltage and current allowing Automatic detection of shorts/open and other system failures

UEI card DNx-DIO-363 12 channels relay output 2A / 48 Vdc 35 Vac

Technical specifications

The UEI manufacturer’s card, DNX-DIO-463 is a 12-channel relay output card 2A 48 Vdc / 35 Vac. Programmable overvoltage protection (50 mA to 2 A). Programmable overvoltage duration limits. The card monitors the output voltage and current of each channel and automatically detects short circuits / openings and other malfunctions.

Software and drivers

The UEIDAQ Framework library uses the same API to access all devices of the DNx distributed cards. Using the UEIDAQ Framework library significantly reduces the amount of code required to perform data acquisition and control applications. UEI supports all 32/64 bit versions of Windows up to the most recent version of Windows 10. The UEIDAQ Framework provides a set of C ++ classes to easily interface your C ++ programs with acquisition devices UEI data. The UEIDAQ Framework also comes with an ANSI-C API. Instantly download Windows software and drivers for PowerDNA / DNR hardware from the UEI. Includes UEIDAQ Framework library, which supports the following software: VisualBASIC 6, VB.NET, LabVIEW, MATLAB, LabWindows / CVI, OPC server, Excel, .NET, C #, C / C ++, Borland Delphi, Borland C ++ Builder.

Depending on the reception station, the card references will be:
– DNA-DIO-463 for Cubes
– DNR-DIO-463 for Racks
– DNF-DIO-463 for the FLATRACK

Card usable with the UEILogger.
