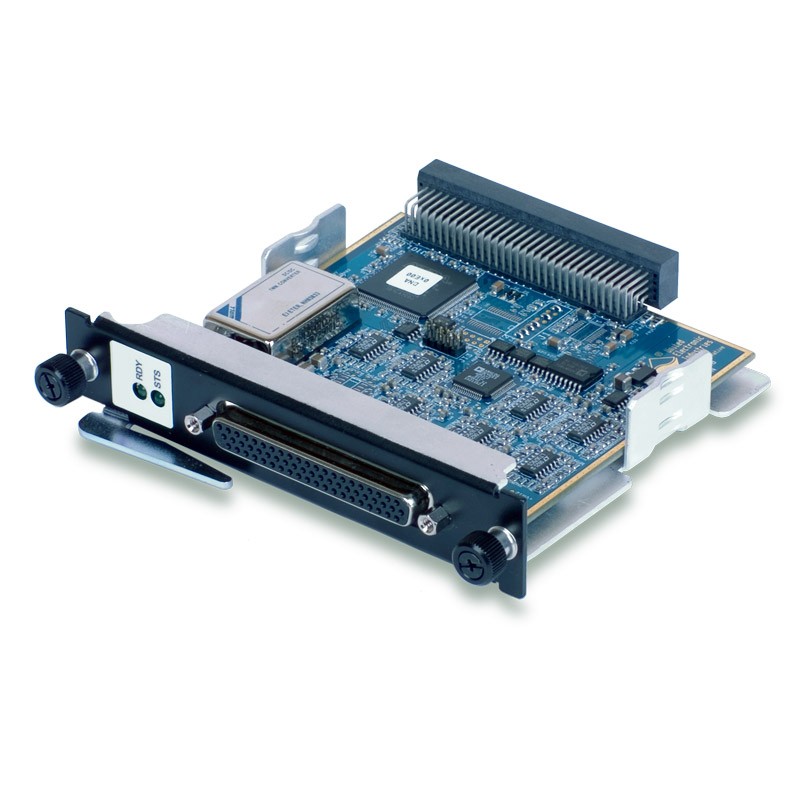

DNx-CAN-503 - 4-port, CAN bus interface board

DNx-CAN-503 - 4-port, CAN bus interface board
Main features
  • 4 independent CAN ports
  • Up to 1Mbit/sec maximum transfer rate
  • 24MHz base clock
  • Completely independent bit rate settings for every port
  • 250V DC max isolation between ports; ports and circuitry
  • Hot plugging support; error detection
  • Fully compatible with ISO 11898 standard

The DNA/DNR/DNF-CAN-503 are a 4-port high-speed CAN interface for PowerDNA distributed automation and control system. This board (layer) is designed for communication with high-speed CAN devices up to 1 Mb/s. DNx-CAN-503 uses the Philips SJA1000 CAN Controller for advanced functionality such as listen-only, self-reception (echo), and advanced filtering modes and new transceivers for sleep/wakeup mode support.

The DNx-CAN-503 includes drivers and example code for use in Visual Basic, VB .NET, C#, J#, C/C++, OPC, DASYLab, LABVIEW (including Linux/Windows and Real-time), VEE, MATLAB, QNX and Linux.
