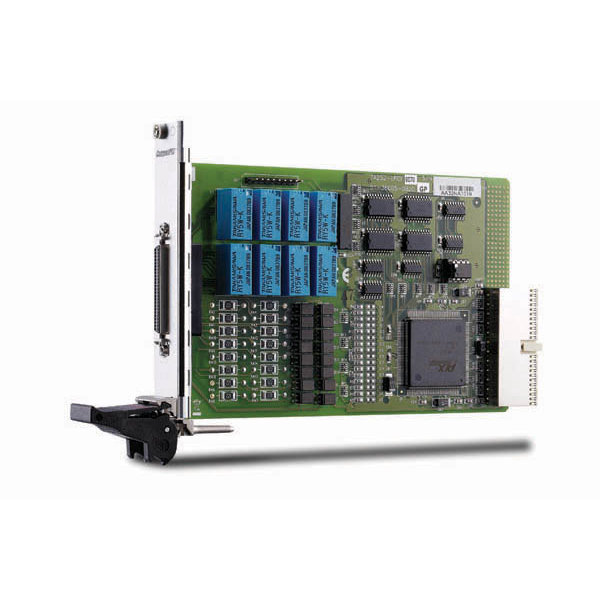

cPCI-7252 - 8-CH Relay Outputs & 16-CH Isolated DI cPCI Module

cPCI-7252 - 8-CH Relay Outputs & 16-CH Isolated DI cPCI Module
Main features
  • PICMG 2.0 Rev 2.1
  • 8-CH SPDT relays
  • Nonlatching relays
  • On-board relay driving circuits
  • Relay output status read back
  • 16-CH isolated DI
  • On-board low-pass filtering for DI
  • Two external interrupt sources



cPCI-7252 provides 8-CH SPDT (Form C) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input channels are non-polarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments.
