Main features
  • PICMG 2.0 Rev 2.1
  • 48-CH digital TTL/DTL input/output
  • Emulates 4/2/1 industry standard 8255 PPI (mode 0)
  • Direct interface with OPTO-22 compatible I/O modules Output port status read back
  • On board 8254 timer/counter chip
  • Programmable interrupt source
  • Provides 12V and 5V power supply to OPTO-22 connectors-22
cPCI-7248 48-CH DIO & Timer/Counter Module 335 €
cPCI-7249R 48-CH DIO & Timer/Counter Module with Rear I/O 388 €

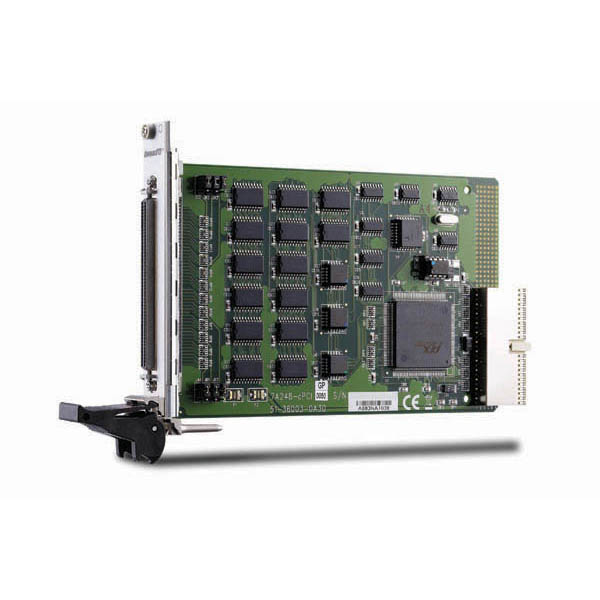

The ADLINK cPCI-7248 and cPCI-7249R are 48-channel parallel digital input/output (DIO) Cards for the PXI/CompactPCI form factor. The cPCI-7248 and cPCI-7249R devices emulate mode 0 of the industry standard 8255 Programmable Peripheral Interface (PPI) chips. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports.

The cPCI-7248 and cPCI-7249R devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The cPCI-7248 and cPCI-7249R devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer. The cPCI-7249R is the extended version of the cPCI7248, which features one more latch register and rear I/O connectivity.
