ATST364 - 2 channels digitizer 1 Gs/s 12 bits with Thunderbolt 3 interface

ATST364 - 2 channels digitizer 1 Gs/s 12 bits with Thunderbolt 3 interface
Main features
  • Thunderbolt™ 3 (USB type C) interface to the host computer — No embedded PC required!
  • 1 GS/s Real Time Sampling rate
  • 2 channels sampled at 12 bit resolution
  • 2.6 GB/s throughput across Thunderbolt 3
  • Thunderbolt 4 compatible
  • 512 Megabytes of on-board Dual-Port Memory per channel
  • Variable frequency external clock capable
  • Fixed ±400 mV Input Range
  • High Signal to Noise Ratio
  • Continuous Streaming Mode
  • Trigger Input & Trigger Output connectors
  • Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, MATLAB, Python and LabVIEW
  • Support for Windows, Linux, and macOS

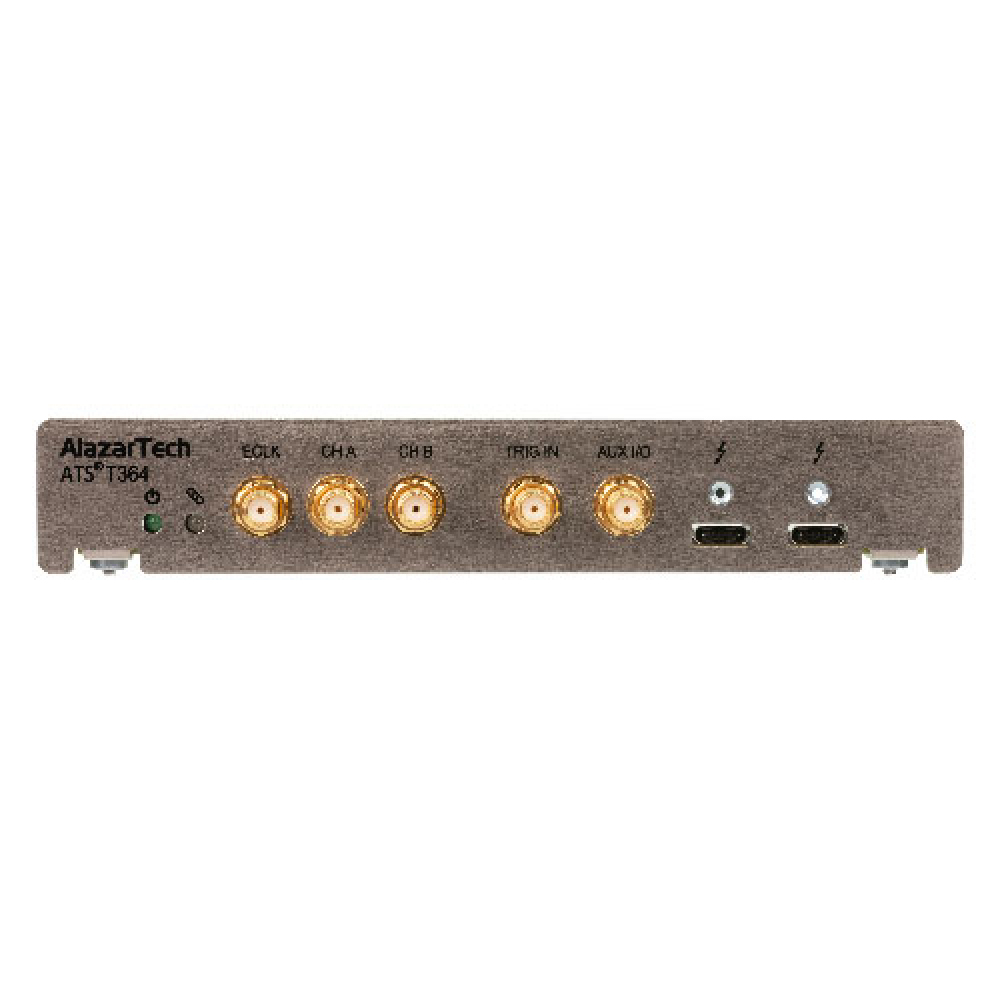

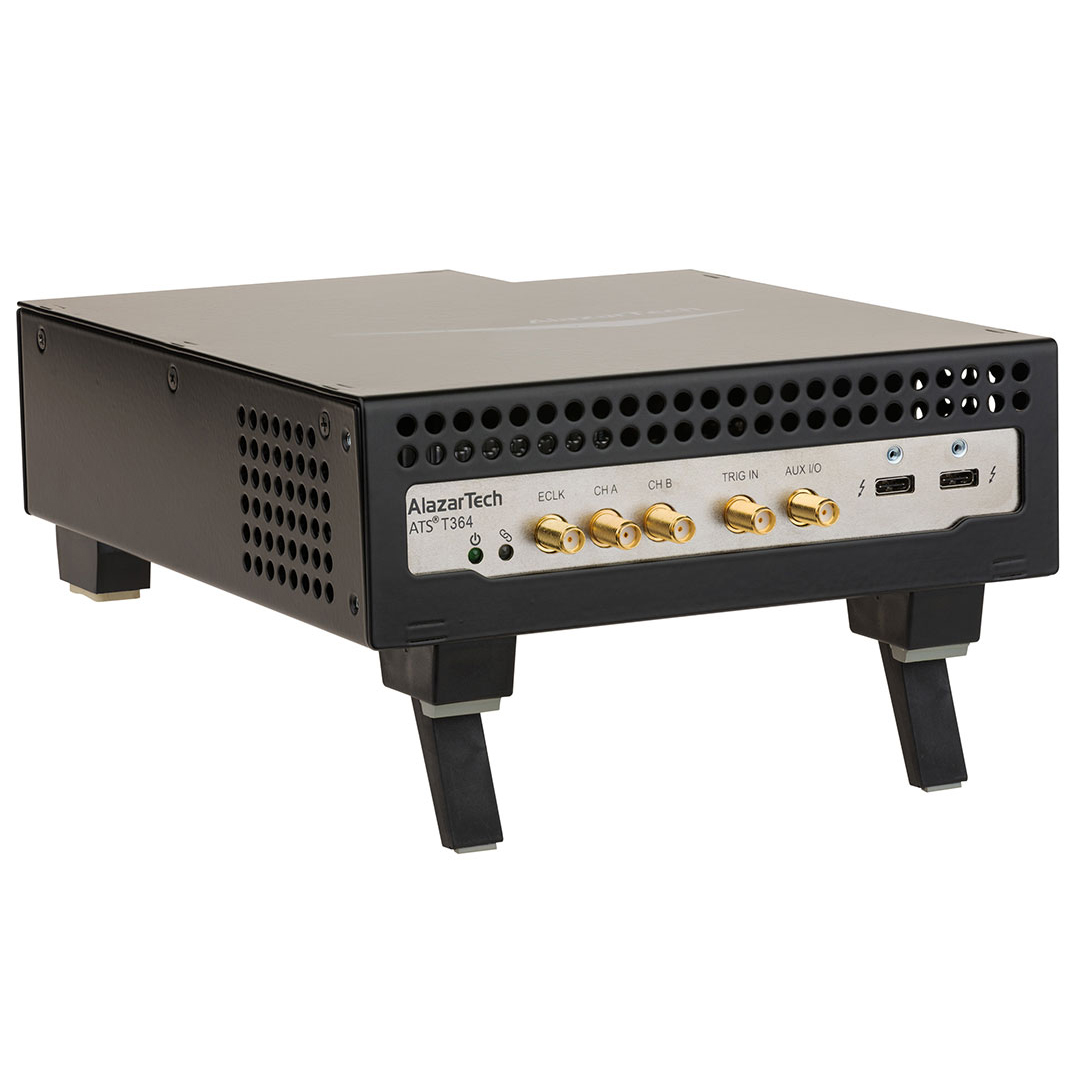

ATST364 : 2 channels digitizer 1 Gs/s 12 bits with Thunderbolt 3 interface

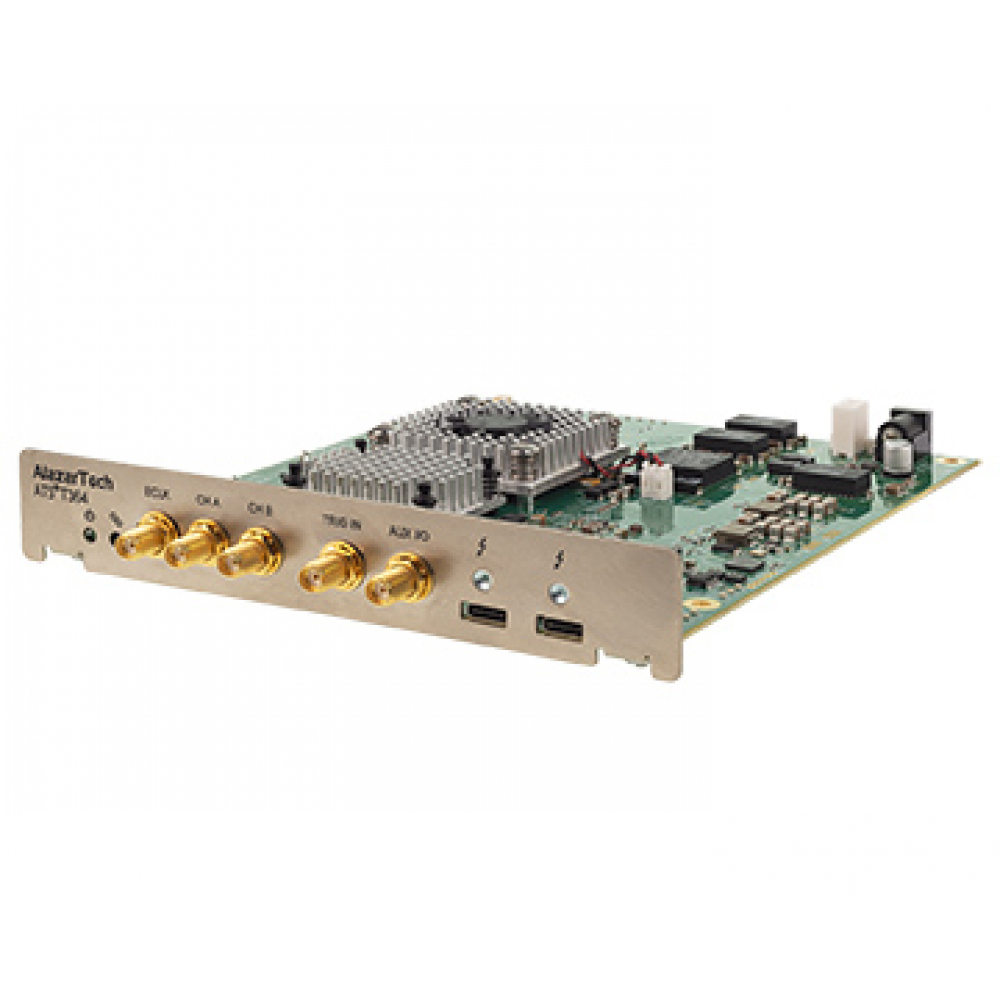

ATST364 is a low-noise, 12-bit Thunderbolt 3 waveform digitizer board that can sample two analog inputs at rates up to 1 GS/s.

With Thunderbolt 3 connectivity and data throughput as fast as 2.6 GB/s (2600 MB/s), ATST364 is an ideal solution for many applications, including next generation OCT, radar, ultrasonics, spectrometry, and RF signal recording.

Any code developed for the AlazarTech ATS®9364 can be ported seamlessly to ATST364.

ATST364 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
