Main features
  • Thunderbolt™ 3 (USB type C) interface to the host computer — No embedded PC required!
  • 500 MS/s Real Time Sampling per channel
  • 2 channels sampled at 12 bit resolution
  • 1.6 GB/s throughput across Thunderbolt 3 connection
  • Thunderbolt 4 compatible
  • Up to 250 MHz full power bandwidth
  • Variable Input Range from ±100 mV to ±4 V
  • NIST- and CNRC-Traceable Calibration
  • Continuous Streaming Mode
  • 256 Megasamples of Dual-Port Memory per channel
  • Trigger Input & Trigger Output connectors
  • Includes Thunderbolt 3 cable with single screw-lock for industrial-level ruggedness

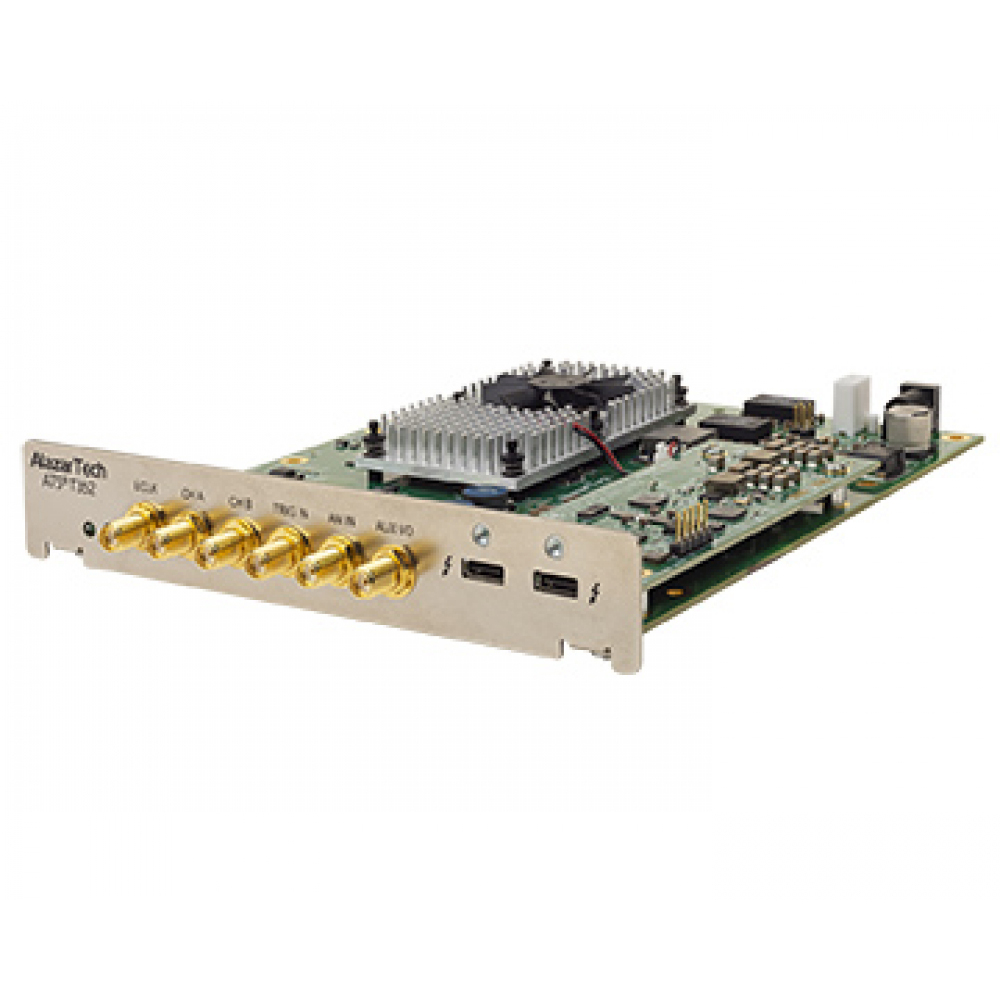

  • OEM version without enclosure available for integration into your product
  • AlazarDSO Software allows quick start-up
  • SDK for C/C++, C#, Python, MATLAB, and LabVIEW
  • Support for Windows, Linux, and macOS

ATST352 : 2 channels digitizer 500 Ms/s 12 bits with Thunderbolt 3 interface

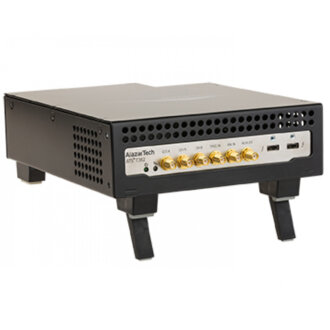

ATST352 is a 12-bit Thunderbolt 3-based waveform digitizer that can sample two analog inputs at rates up to 500 MS/s.

With Thunderbolt 3 connectivity and data throughput as fast as 1.6 GB/s (1600 MB/s), ATST352 is an ideal solution for many applications, including OCT, radar, ultrasonics, spectrometry, and RF signal recording.

Any code developed for the AlazarTech ATS®9352 can be ported seamlessly to ATST352.

ATST352 interfaces to the host computer using the Thunderbolt 3 bus that runs at 40 Gbps.
