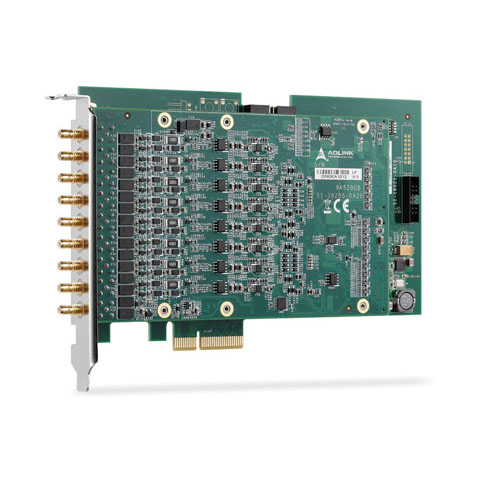

PCIe-9529 - 8-CH 24-Bit High-Resolution Dynamic Signal Acquisition Module

PCIe-9529 - 8-CH 24-Bit High-Resolution Dynamic Signal Acquisition Module
Ask for a quote
Demander un devis
Main features
  • 24-Bit Sigma-Delta ADC
  • 8 simultaneous analog inputs
  • 192 kS/s maximum sampling rate
  • ±1V, and 10V input ranges
  • 110 dB dynamic range
  • Antialiasing filters
  • AC (0.5Hz), or DC coupling, software selectable
  • IEPE – 4mA, software configurable

The ADLINK PCIe/PXIe-9529 is a high-performance, high density, 8-CH analog input dynamic signal acquisition module. The PCIe/PXIe-9529 features eight 24-bit simultaneously sampling analog input channels. The 24-bit sigma-delta ADC provides a sampling rate of 192 kS/s at high resolution, making it ideal for higher dynamic range signal measurement. All channels are sampled simultaneously and accept input range up to ±10V, and the analog inputs support software-selectable AC or DC coupling and 4 mA bias current for integrated electronic piezoelectric (IEPE) sensors. The module is especially designed to meet the requirements of vibration analysis and audio testing.
