ATS9120 - PCI Express digitizer, 2 channels 20 MS/s 12 bit A/D

ATS9120 - PCI Express digitizer, 2 channels 20 MS/s 12 bit A/D
Main features
  • 20 MS/s Real Time Sampling per channel
  • 2 channels sampled simultaneously
  • 12 bit A/D resolution
  • Up to 8 Million samples of on-board acquisition memory per channel
  • Continuous Streaming Mode
  • External clock from 20 MHz to 1 MHz
  • Up to 10 MHz full power bandwidth
  • ±40 mV to ±20 V Input Range
  • 60 dB Signal to Noise Ratio
  • NIST- or CNRC-Traceable Calibration
  • Trigger Input & Auxiliary I/O connectors
  • Half-Length PCIe x1 Card
  • AlazarDSO Software allows quick start-up
  • SDK for C++/C#, Python, MATLAB, and LabVIEW
  • Support for Windows & Linux

ATS9310 : PCI EXPRESS DIGITIZER, 2 CHANNELS 50 MS/S 12 BIT A/D

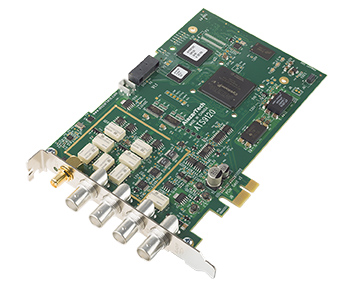

AlazarTech ATS®9120 is a dual-channel, 12-bit, 20 MS/s waveform digitizer card capable of storing up to 8 Million samples per channel of acquired data in its on-board memory or streaming acquired data to PC memory. ATS9130 is a single-lane PCI Express (PCIe x1) Gen 1 card, which supports up to 200 MB/s bus throughput.

Users can capture data from one trigger or a burst of triggers. Users can also stream very large datasets continuously to motherboard memory or hard disk.

ATS9130 PCI Express digitizers are an ideal solution for cost sensitive OEM applications that require a digitizer to be embedded into the customer’s equipment.

ATS9130 is supplied with AlazarDSO oscilloscope software that lets the user get started immediately without having to write any software. Users who need to integrate the ATS9130 in their
own program can purchase a software development kit, ATS-SDK, for C/C++, C#, Python, MATLAB, and LabVIEW for both Windows and Linux operating system.

All of this advanced functionality is packaged in a low-power, half-length PCI Express card.
