XA-160M - XMC Module with Two 160 MSPS A/Ds, Two 615 MSPS DACs and Artix-7 FPGA

XA-160M - XMC Module with Two 160 MSPS A/Ds, Two 615 MSPS DACs and Artix-7 FPGA
Main features
  • Deux voies A / D 160 Me/s, 16 bits
  • Deux voies D / A 615 Me/s, 16 bits
  • 89 dB SFDR, 72 dBFS SNR A / Ds
  • 73 dB SFDR, 68 dBFS SNR D / A
  • Plage d’entrée 1Vpp
  • Plage de sortie 1Vpp
  • DIO sur P16 (19 paires différentielles)
  • Xilinx Artix-7 FPGA
  • Mémoire DDR3
  • Horloge d’échantillonnage programmable ou externe
  • Système d’échantillonnage synchronisé
  • Horloge de référence commune et Triggers
  • Fonctions de gestion de l’alimentation
  • Module PCI Express 2.0 XMC (75×150 mm)
  • Utilisation dans n’importe quel ordinateur de bureau PCI Express, PCI / PXI compact, PXIe ou une application PCI Express câblée

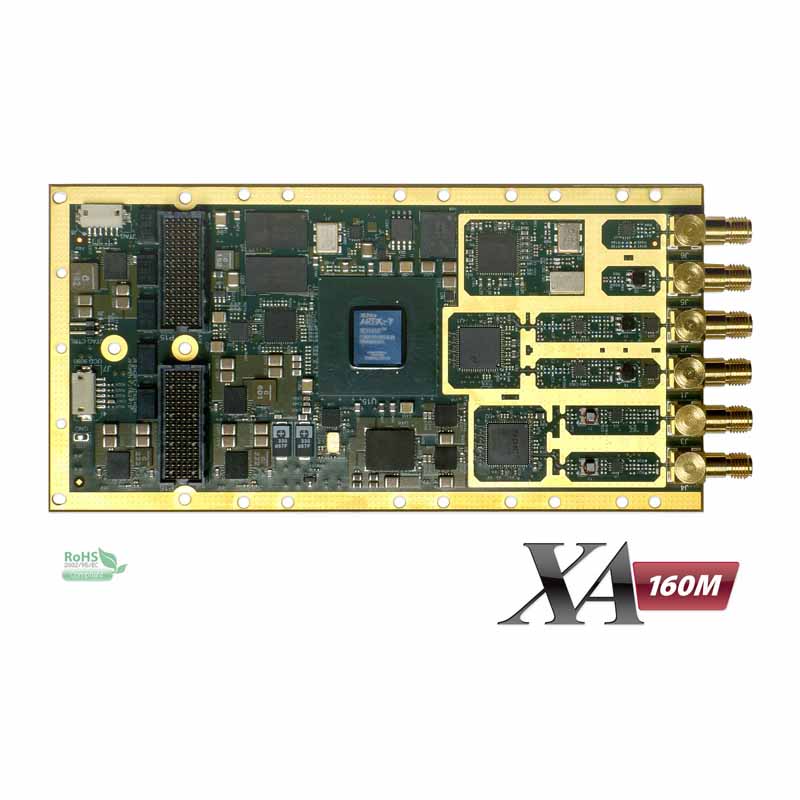

The XA-160M is an XMC IO module featuring two 16-bit, 160 MSPS A/D channels and two 16-bit, 600 MSPS DAC channels designed for high speed stimulus-response, ultrasound, and servo control applications.

Flexible trigger methods include counted frames, software triggering and external triggering. The sample rate clock is either an external clock or on- board programmable PLL clock source.

Data acquisition control, signal processing, buffering, and system interface functions are implemented in a Xilinx Artix-7 FPGA device. Two 256Mx16 memories provide data buffering and FPGA computing memory.

The logic can be fully customized using VHDL and MATLAB using the FrameWork Logic toolset. The MATLAB BSP supports real-time hardware-in-the- loop development using the graphical, block diagram Simulink environment with Xilinx System Generator.

The PCI Express 2.0 interface supports continuous data rates up to 3200 MB/ s between the module and the host. A flexible data packet system implemented over the PCIe interface provides both high data rates to the host that is readily expandable for custom applications.
