PXIe-9848 - 8-CH 14-bit 100 MS/s High-Speed PXI Express Digitizer

PXIe-9848 - 8-CH 14-bit 100 MS/s High-Speed PXI Express Digitizer
Clear
Main features
  • PXI Express specification Rev. 1.0 compliant
  • Up to 100 MS/s sampling rate & High resolution 14-bit ADC
  • Up to 100 MHz bandwidth for analog input
  • 512 MB onboard storage memory
  • Programmable input voltage range of ±0.2 V or ±2 V, or ±100 V Max (PXIe-9848H)
  • Scatter-Gather DMA data transfer for high speed data streaming
  • One external digital trigger input
  • Full auto-calibration

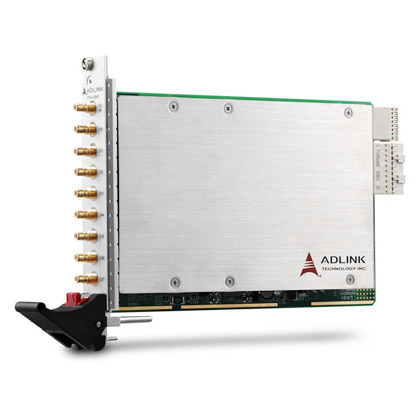

PXIe-9848H 8-CH 14-Bit 100 MS/s High Speed PXI Express Digitizer with x15/x50 Attenuator

The ADLINK PXIe-9848/9848H is an 8-channel, 14-bit, 100 MS/s digitizer delivering both high-accuracy measurement results and high-dynamic performance. With a PXI Express bus interface and ample onboard acquisition memory up to 512 MB, the PXIe-9848/9848H can easily manage simultaneous 8-CH data streaming. High density and high speed digitizer features ideally position the PXIe-9848/9848H for applications such as LIDAR, radar signal acquisition, and PSU (Power Supply Unit) testing applications.

The PXIe-9848 provides a flexible set of input ranges from ±0.2V to ±2V, software selectable 50Ω or 1MΩ input impedance, a wide variety of triggering options and tight synchronization capability, all maximizing convenience of use. In addition, ADLINK provides the PXIe-9848H, features a x15/x50 signal condition module providing both high input voltage range of ±100V and high dynamic performance, delivering the optimum solution to measurement range expansion in a PXI system.

Simultaneous 8-CH Data Streaming

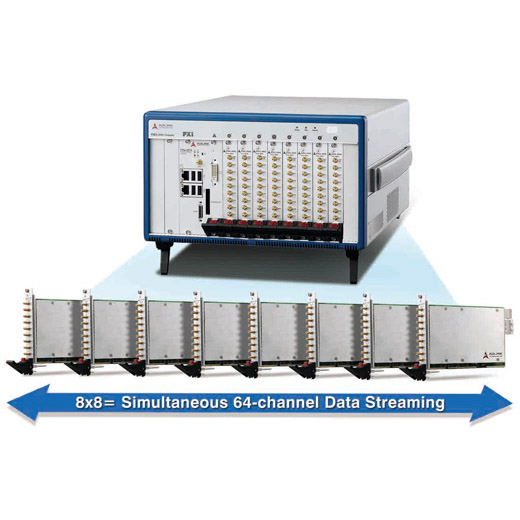

Benefiting from PXI Express architecture, users can synchronize multiple PXIe-9848 digitizers to mount a test system providing up to 64 channels in a single 9-slot PXI Express chassis. PXIe trigger functions enable all channels to sample simultaneously and synch to each digitizer.

pxie-9848_8-8

Extra Buffering
The PXIe-9848 provides built-in memory up to 512 MB for massive data storage, enabling users to extend acquisition for preset durations.

Flexible Use Options
The PXIe-9848 provides a flexible set of input ranges from ±0.2V to ±2V, software selectable 50Ω or 1MΩ input impedance, a wide variety of triggering options and tight synchronization capability, all maximizing convenience of use.

Dedicated Attenuator for PXIe-9848
The ADLINK PXIe-9848H incorporates a x15/x50 attenuator allowing the PXIe-9848 to perform as a signal conditioning module. 8 simultaneous analog inputs and 15:1 or 50:1 attenuation ratio allow high input voltage range of ±100V. Input impedance, analog input connectors, over-voltage protection, and dedicated mechanical design match the attenuator board flawlessly with the PXIe-9848. The attenuator delivers the perfect solution to measurement range expansion in the PXI system.
