| PCIe-PXIe-8565/1M | The PCIe-to-PXIe expansion kit includes one PCIe-8560, one PXIe- 8565, and one ACL-EXPRESS cable (1 meter) | |
| PCIe-PXIe-8565/3M | The PCIe-to-PXIe expansion kit includes one PCIe-8560, one PXIe- 8565, and one ACL-EXPRESS cable (3 meters) | |
| PCIe-PXIe-8565/7M | The PCIe-to-PXIe expansion kit includes one PCIe-8560, one PXIe- 8565, and one ACL-EXPRESS cable (7 meters) |

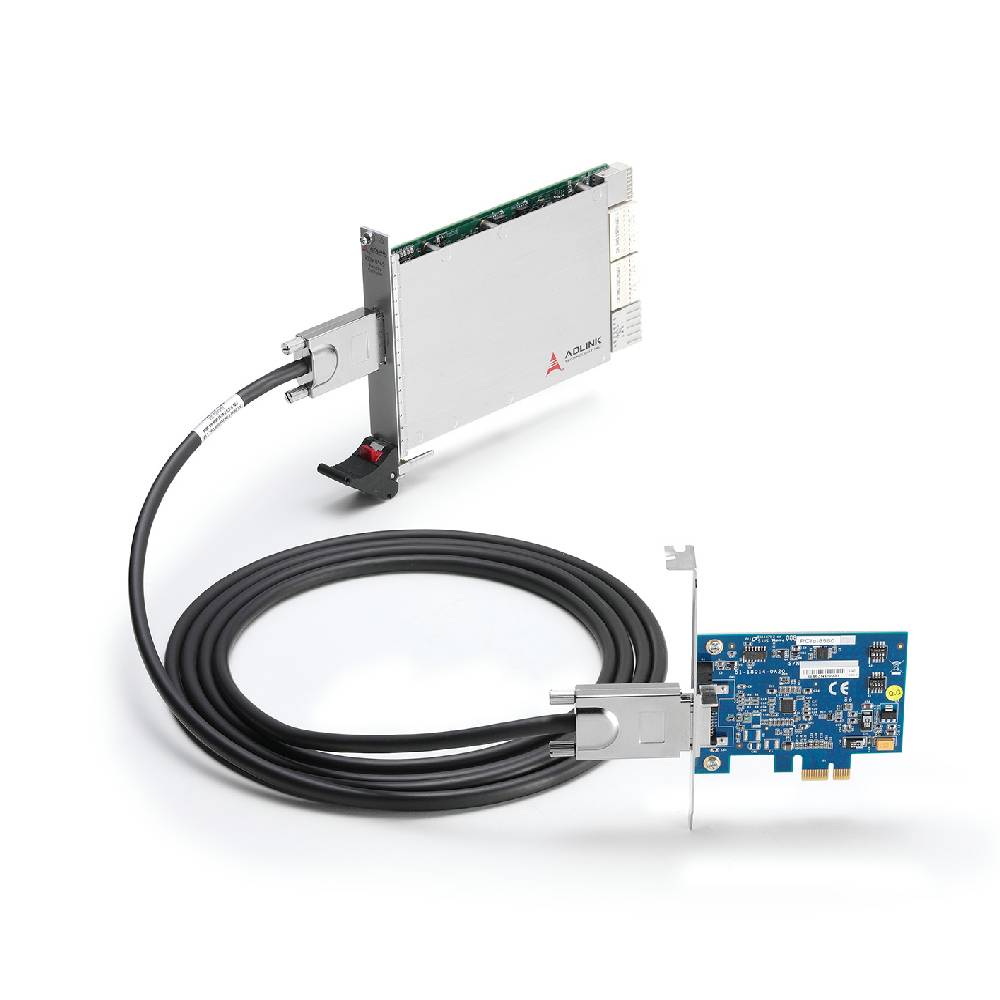

PCIe-PXIe-8565 - PXI Express chassis expansion kit
Main features
- Includes PCIe-8560 peripheral card, PXIe-8565 3U system module, and ACL-EXPRESS cable in 1, 3, or 7 meter lengths
- Compliant with PXI-5 PXI Express hardware specification Rev.1.0 and PCI Express Base Specifications Rev. 1.0a
- 250 MB/s maximum system throughput
This PCI Express bus to PXI Express chassis expansion kit consists of ADLINK’s PCIe-8560 peripheral card, PXIe-8565 3U system module, and ACL-EXPRESS cable available in various lengths. The expansion kit acts as a PCI Express switch supporting comprehensive PCI Express hardware and software transparency between a host PC and a PXI Express chassis with bandwidths up to 250 MB/s via PCIe x1 Gen1 signaling.
