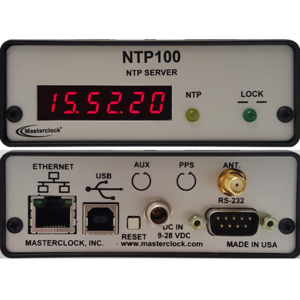

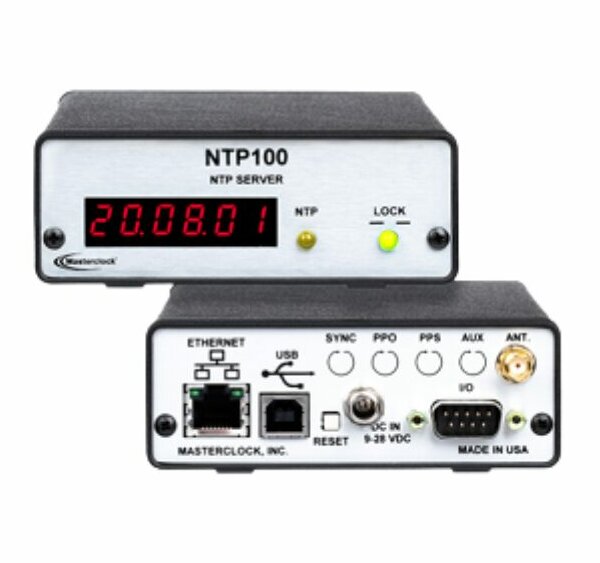

The NTP100-GNSS is a Network Time Protocol (NTP) server that synchronizes with GNSS satellites (GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS) and distributes NTP reference signals via an Ethernet interface. It is compatible with both IPv4 and IPv6. When synchronized with the atomic clocks of GNSS satellites, the device’s long-term accuracy matches that of the GNSS time reference sources. In the event of signal loss, an internal TCXO (temperature-compensated crystal oscillator) maintains a stability of ±1 minute per year, while an optional OCXO (oven-controlled crystal oscillator) improves holdover stability to ±250 milliseconds per year after 30 days of aging.
NTP100-GNSS - NTP server that synchronizes with GNSS satellites and distributes NTP reference signals via Ethernet.
Main features
- Supports NTP and DHCPv4 for automatic acquisition of network address, name servers, and time server configuration.
- SSH communication supported.
- IPv4/IPv6 compatible.
- GNSS receiver with SMA connector – 72 channels.
- Supported GNSS protocols: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1, SBAS L1 C/A (WAAS, EGNOS, MSAS, GAGAN),
- Galileo E1B/C.
- NTP output accuracy of <0.5 seconds RMS (as measured in the lab).
- 6-digit red LED clock display.
- DC input range: 9–28 VDC.
- External 24 VDC wall-mount power supply included, with locking DC connector (UL and CE certified).
- Operating temperature: 0°C to 60°C.
- Humidity tolerance: up to 90% (non-condensing).
- Complies with FCC, ROHS, CE, and ANSI standards.
Prix HT : Shipped within 2 to 3 weeks
