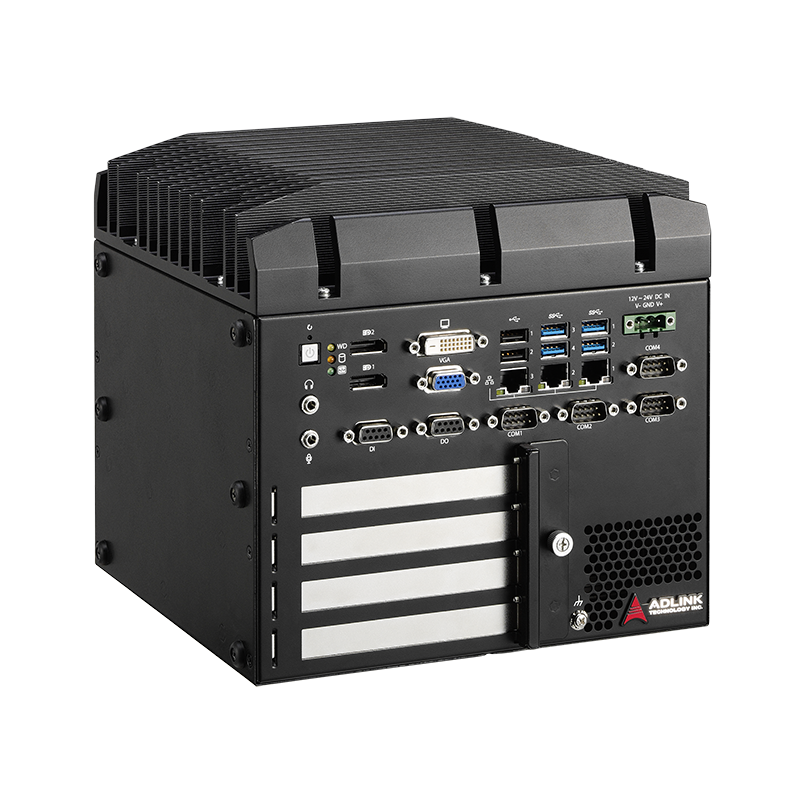

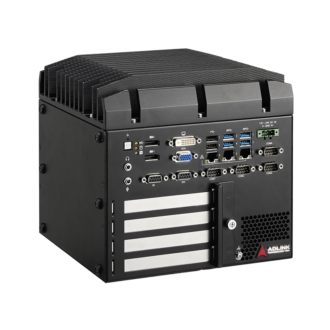

MVP-6010/6020 - Value Family 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Expandable Fanless Embedded Computer

MVP-6010/6020 - Value Family 6th Generation Intel® Core™ i7/i5/i3 Processor-Based Expandable Fanless Embedded Computer
Clear
Ask for a quote
Demander un devis
Main features
  • 6th Generation Intel® Core™ i7/i5/i3 Skylake FCLGA1151 processor + H110 (MVP-6010)/ Q170 (MVP-6020) chipset
  • Dual-channel DDR4 SO-DIMM sockets support up to 32 GB memory
  • 1 PCIex16 and 3 PCI (MVP-6010)/ 2 PCIex16 and 2 PCI (MVP-6020) expansion slots available, supporting Gen3 PCIe cards
  • Support for 2 independent displays with on-board 2x DisplayPort, 1x DVI-D, and 1x VGA ports onboard
  • 6 External USB ports (4x USB 3.0, 2x USB 2.0), 1 internal USB 2.0 port
  • 3 Intel GbE ports with teaming function
  • Built-in 8CH DI and 8CH DO, 2 software-programmable RS-232/422/485 + 2 RS-232 ports
  • Fanless operation from 0°C to 50°C (with 35W CPU), and 0°C to 40°C (with 65W CPU)
MVP-6025/M8GIntel Skylake-S i7-6700+Q170 Fanless PC, 2 PCIe x16 + 2 PCI, DDR4 8 Gb1521 €
MVP-6013`/M4GIntel Skylake-S i3-6100TE+H110 Fanless PC, 1 PCIe x16 + 3 PCI, DDR4 4 Gb1108 €
MVP-6015/M8GIntel Skylake-S i7-6700+H110 Fanless PC, 1 PCIe x16 + 3 PCI, DDR4 8 Gb1483 €
MVP-6000-PSAC-DC Power Suplly adapter 160 W60 €
MVP-6000-OPTOption hard disk or SSD and OS to consult us

ADLINK’s newly introduced MVP-6010/6020 Series value line of fanless embedded computing platforms, incorporating the 6th Generation Intel® Core™ processor, provides one PCIex16 and three PCI or two PCIex16 and two PCI expansion slots, 1 mini PCIe slot and single-side access for I/O ports, optimizing easy maintenance in industrial automation environments. The series retains the robust design of all ADLINK MXC/MXE lines, at a new extremely costeffective price point.
The MVP-6010/6020 Series supports dual-channel DDR4 memory for more powerful computing and the Intel® HD Graphics 530 speeds graphics performance. Along with a versatile I/O array and flexible expansion capacity, the MVP-6010/6020 Series fully satisfies all the needs of industrial automation with the performance demanded by vision inspection, motion control, and surveillance applications. Fanless construction not only overcomes contaminant and noise challenges presented by harsh IA environments, the elimination of problematic structural elements that negatively affect MTBF greatly increases life cycle expectations for the platform.
