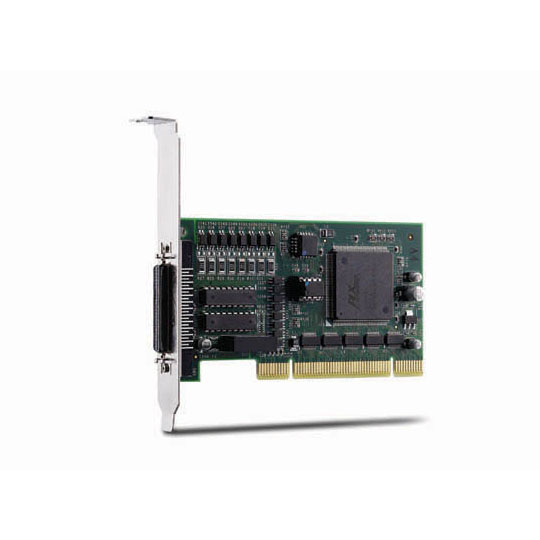

LPCI-7230 - Low-Profile 16-CH Isolated DI & 16-CH Isolated DO PCI Card

LPCI-7230 - Low-Profile 16-CH Isolated DI & 16-CH Isolated DO PCI Card
Main features



  • Support a 32-bit 3.3 V or 5 V PCI bus
  • 16-CH isolated digital input and 16 isolated digital output
  • 2500 Vrms optical isolation
  • Sink current up to 500 mA on each isolated output
  • Two external interrupt sources
  • Compact, low-profile PCI size





ADLINK LPCI-7230 is 32-CH isolated input and/or card. It provides a 2,500 C optical isolation protection. Two wide input range of the LPCI-7230 makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The LPCI-7230 devices also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automations applications. The LPCI-7230 also provides two interrupt sources on digital input channels, which are easily user configurable.

Prix HT : 999999,00
