| LGR-5329-EU | Stand-alone, high-speed 200 kS/s, multifunction data logger with isolated digital; includes a 4 GB SD card (Plug US and EU) |
LGR-5320 Series - Stand-Alone, High-Speed, Multifunction Data Loggers
Main features
- Up to 200 kS/s correlated sampling of all data
- 16 analog inputs up to ±30 V
- 16-bit resolution
- 16 industrial digital inputs up to 30 V (500 V isolation available)
- Single Form C relay digital output configurable for triggering/alarming
- 4 encoder inputs – conventional or quadrature available
- Detachable screw terminals
- 4 GB SD™ memory card included, supports up to 32 GB
- Analog and Digital multi-channel triggering
- Push-button controls for field operation

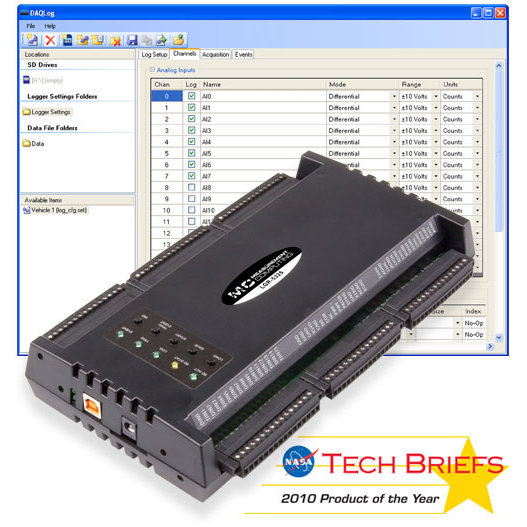

LGR-5320 Series: Stand-Alone from MCC, High-Speed, Multifunction Data Loggers
The LGR-5320 Series from MCC are high-speed, stand-alone data loggers for analog and digital signals. Each device offers 16 analog inputs, 16 digital inputs, one single Form C relay (0.5 A) digital output for triggering/alarming, and four counter/encoder inputs. Use these devices to collect high-speed correlated analog and digital data without a computer.
LGR-5320 devices perform correlated measurements at up to 200 kS/s directly to a SD or Secure Digital High Capacity (SDHC) memory card. Use the advanced analog and digital triggering options to collect data and monitor systems and events without dedicating a computer. With the easy-to-use DAQLog software (included), you can configure LGR-5320 loggers to retrieve data through the USB interface or SD memory card.
Each data logger can be configured through the SD memory card or through the onboard USB port. Simply configure the logging session with the included DAQLog software. All logging parameters are captured on the SD memory card. A 4 GB SD memory card is included with each data logger. Memory cards up to 32 GB are supported for extended data collection. To retrieve data, either remove the SD memory card from the logger and upload to a computer, or connect a computer to the USB port on the logger.
Three models are available in the LGR-5320 series:
LGR-5325: Data logger with 16 SE/8 DIFF analog inputs, 16-bit resolution, 100 kS/s sample rate, 16 digital I/O, 4 counter inputs, and 4 quadrature encoder inputs
LGR-5327: Data logger with 16 SE/8 DIFF analog inputs (Up to +/-30V), 16-bit resolution, 200 kS/s sample rate, 16 digital I/O, 4 counter inputs, and 4 quadrature encoder inputs
LGR-5329: Data logger with 16 SE/8 DIFF analog inputs (Up to +/-30V), 16-bit resolution, 200 kS/s sample rate, 16 industrial isolated digital I/O, 4 counter inputs, and 4 quadrature encoder inputs
Software
- DAQLog: Configuration and Data Logging Software for the LGR-5320 Series
- Supported Operating Systems: Windows® 10/8/7/Vista®/XP 32/64-bit
